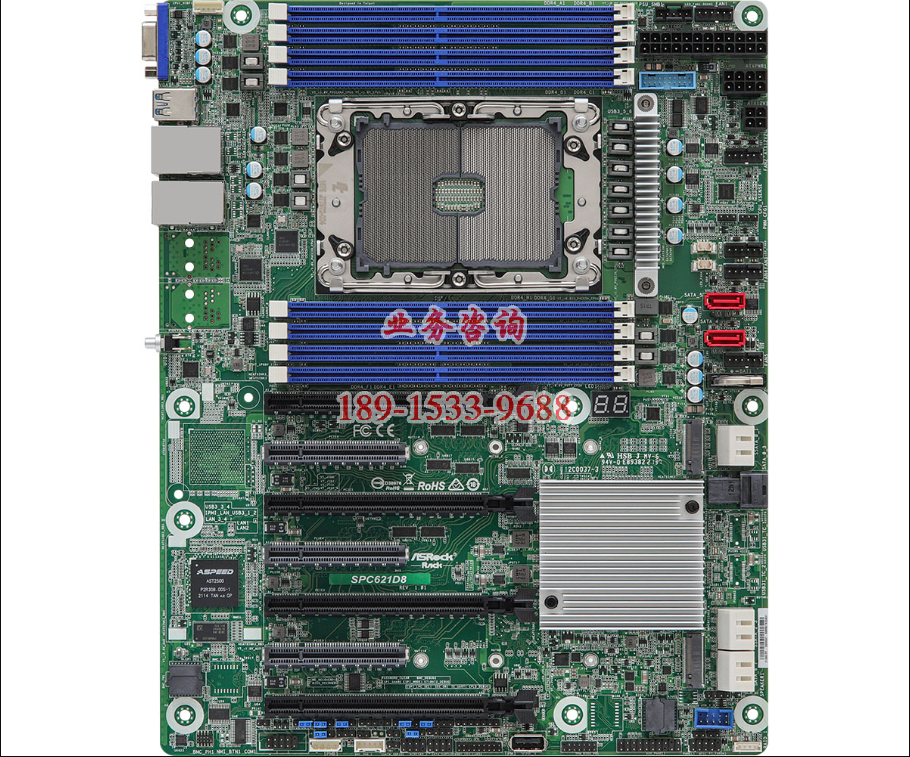

ATX (12" x 9.6")
Supports 3rd Gen Intel® Xeon® Scalable Processors
8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel® Optane™ Persistent Memory
4 PCIe4.0 x16, 3 PCIe4.0 x8
Supports 1 M.2 (PCIe3.0 x4), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)
13 SATA 6Gb/s (including 1 port from M.2)
2 RJ45 (1GbE) by Intel® i210
Remote management (IPMI)
物理信息 | |
型式 | ATX |
尺寸 | 12" x 9.6" |
处理器系统 | |
CPU | Supports 3rd Gen Intel® Xeon® Scalable processors |
插槽 | Single Socket P+ (LGA 4189) |
芯片组 | Intel® C621A |
系统内存 | |
容量 | 8 DIMM slots (1DPC) |
类型 | Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series |
每个DIMM支持的 DIMM 尺寸 | RDIMM: up to 64GB RDIMM-3DS: up to 256GB LRDIMM: up to 128GB LRDIMM-3DS: up to 256GB |
Max. DIMM Frequency | max. 3200MHz |
电压 | 1.2V |
扩展插槽 | |
PCIe x 16 | SLOT7: PCIe4.0 x16* SLOT5: PCIe4.0 x16* SLOT3: PCIe4.0 x16* SLOT1: PCIe4.0 x16 * SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied |
PCIe x 8 | SLOT6: PCIe4.0 x8 SLOT4: PCIe4.0 x8 SLOT2: PCIe4.0 x8 |
存储 | |
SATA 控制器 | Intel® C621A (13 SATA 6Gb/s; RAID 0/1/5/10): 1 Mini-SAS HD, 6 SATA 7-pin, 2 SATA DOM, 1 M.2 |
M.2 | 1 M-key (PCIe3.0 x4), supports 22110/2280/2242 form factor 1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor |
以太网 | |
Additional GbE Controller | Intel® i210: 2 RJ45 (1GbE) |
管理功能 | |
BMC 控制器 | ASPEED AST2500 |
IPMI 独立 GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
显示 | |
控制器 | ASPEED AST2500 |
显存 | DDR4 16MB |
后侧面板 I/O 接口 | |
VGA 接口 | 1 DB15 |
USB 3.0 接口 | 4 Type-A (USB3.2 Gen1) |
网络接口 | 2 RJ45 (1GbE) |
Dedicate LAN | 1 dedicated IPMI |
UID Button/UID LED | 1 |
内置接口 | |
电源接口 | 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power) |
串口连接插座 | 1 |
辅助面板接头 | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
TPM 接口 | 1 (17-pin, LPC), 1 (13-pin, SPI) |
热量感应接口 | 1 |
IPMB 接口 | 1 |
VGA 接口 | 1 |
蜂鸣器 | 1 |
风扇接口 | 5 (6-pin) |
USB 3.2 (Gen1) 连接头 | 1 (19-pin, 2 USB3.2 Gen1) |
USB 2.0 连接头 | 1 (9-pin, 2 USB2.0) |
A 型 USB 2.0 连接头 | 1 (Type-A, 1 USB2.0) |
NMI Header | 1 |
System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
扬声器 | 1 |
BMC_SMB Header | 1 |
SGPIO Header | 1 |
VROC KEY | 1 |
Clear CMOS | 1 (contact pads) |
ME/SPS Recovery | 1 |
NC-SI | 1 |
板载 LED | |
Standby PWR LED 5vsb | 1 |
Port 80 LED | 1 |
Fan Fail LED | 5 |
系统 BIOS | |
BIOS 类型 | 256Mb SPI Flash ROM |
BIOS 功能 | AMI UEFI BIOS |
硬件监控 | |
温度 | CPU, PCH, MB, Card side Temperature Sensing |
风扇 | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
电压 | +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3.3VSB, 5VSB |
支持操作系统 | |
操作系统 | Microsoft® Windows® : Server 2016 (64 bit) Server 2019 (64 bit) Linux : Red Hat Enterprise Linux Server 7.9 (64 bit) / 8.3 (64 bit) CentOs 7.9 (64 bit) / 8.3 (64 bit) SUSE Enterprise Linux Server 12 SP5 (64 bit) / 15 SP2 (64 bit) Ubuntu 20.04.1 (64 bit) / 20.10 (64 bit) Hypervisor : VMWare® ESXi 6.7 U3 / vSphere 6.7 U3 VMWare® ESXi 7.0.U1c / vSphere 7.0.U1c Hyper-V Windows® Server 2016 Hyper-V Windows® Server 2019 |
使用环境 | |
温度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
