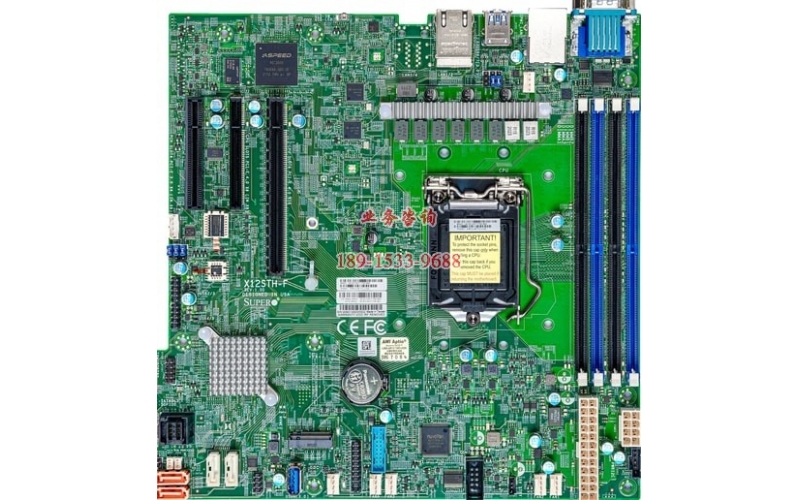

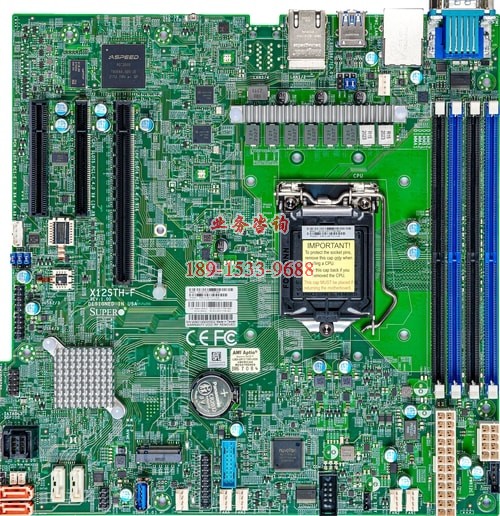

超微主板X12STH-F

超微主板X12STH-F

图片关键词


Key Features

  1. Intel? Xeon?  E-2300 Processor, 10th Generation Intel? Pentium? Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

  2. Intel? C256

  3. Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots

  4. 1 PCI-E 4.0 x16
    1 PCI-E 4.0 x4 (in x8 slot)
    1 PCI-E 3.0 x4 (in x8 slot)
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key

  5. Dual LAN with Intel? Ethernet Controller I210

  6. Intel? C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  7. 2 SuperDOM with built-in power

  8. I/O: 1 VGA, 2 COM, 1 TPM header

  9. 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6x USB 2.0 (2 rear, 4 via headers)

  10. Gen12 iGPU support


Product SKUs

MBD-X12STH-F

  • X12STH-F



Physical Stats

Form Factor

  • Micro-ATX

Dimension

  • 9.6" x 9.6" (24.38cm x 24.38cm)



Processor

CPU

  • 10th Generation Intel? Pentium? Processor, Intel? Xeon?  E-2300 Processor

  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP

Core

  • Up to 8 cores, 16 threads



System Memory

Memory Capacity

  • 4 DIMM slots

  • Up to 128GB ECC UDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666MHz SDRAM

DIMM Sizes

  • 4GB, 8GB, 16GB, 32GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors



On-Board Devices

Chipset

  • Intel? C256

SATA

  • Intel? C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2600 BMC
