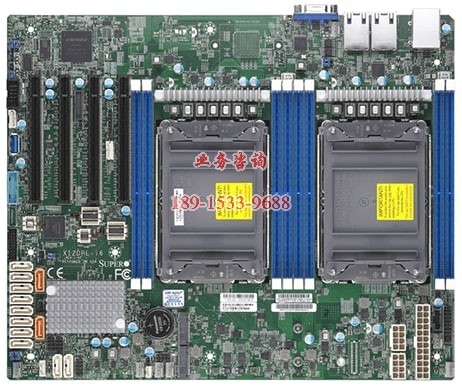

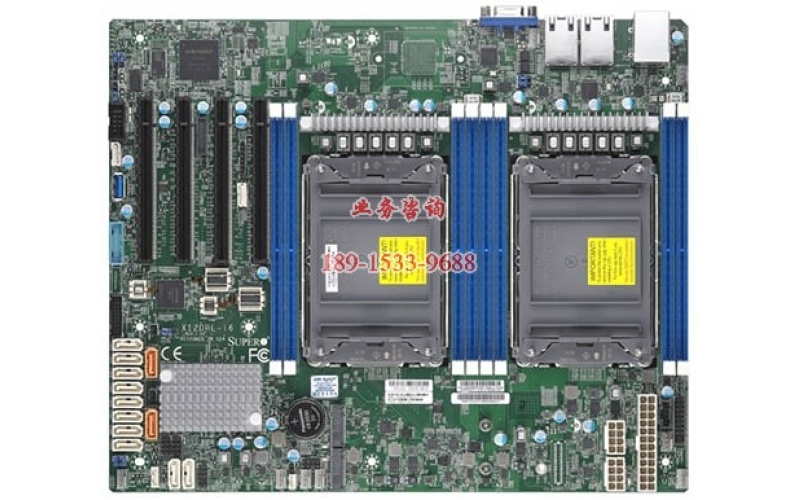

超微主板X12DPL-i6

超微主板X12DPL-i6

图片关键词

Key Features

  1. 3rd Gen Intel? Xeon? Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s

  2. Intel? C621A

  3. Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots

  4. 4 PCI-E 4.0 x16
    M.2 Interface: 2 PCI-E 4.0 x4
    M.2 Form Factor: 2280/22110, 2280
    M.2 Key: M-Key

  5. Intel? C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  6. Dual LAN with Intel? i210 Gigabit Ethernet Controller

  7. 1 VGA port

Product SKUs

MBD-X12DPL-i6

  • X12DPL-i6



Physical Stats

Form Factor

  • ATX

Dimension

  • 12.23" x 10" (31.06cm x 25.4cm)



Processor

CPU

  • 3rd Gen Intel? Xeon? Scalable processors

  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s



System Memory

Memory Capacity

  • 8 DIMM slots

  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666MHz ECC DDR4 LRDIMM (3DS), RDIMM

DIMM Sizes

  • 256GB

  • LRDIMM: 256GB

  • RDIMM: 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset

  • Intel? C621A

SATA

  • Intel? C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2600 BMC

Graphics

  • ASPEED AST2600 BMC
