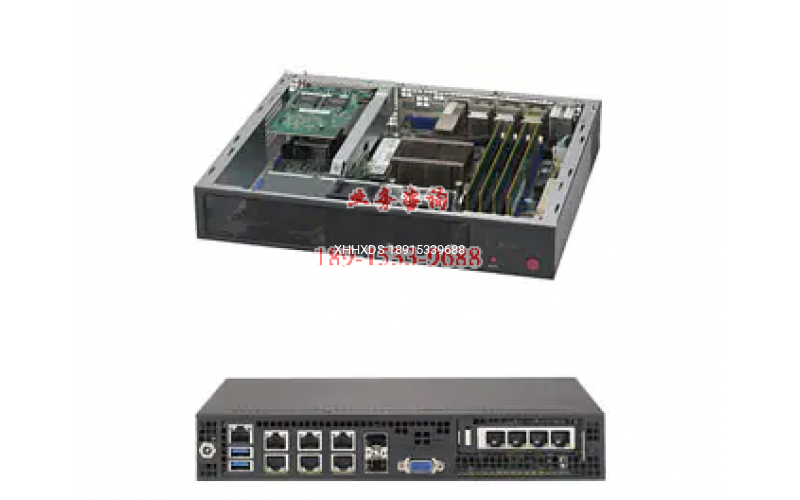

超微SYS-E300-8D

超微SYS-E300-8D


Key Features  - Embedded Networking Applications
  - Network Security Appliance
  - FireWall Applications
  - Virtualization Server
1. Intel? Xeon? processor D-1518,
    Single socket FCBGA 1667;
    4-Core, 8 Threads, 35W2. System on Chip3. 1x 2.5" fixed drive bay with
    bracket (when AOC area is not occupied)4. Up to 128GB ECC RDIMM DDR4
    2133MHz or 64GB ECC/non-ECC
    UDIMM in 4 sockets5. 1 PCI-E 3.0 x8 AOC slot (LP),
    Mini PCI-E (mSATA support),
    M.2 PCI-E 3.0 x4 (SATA support),
    M Key 2242/2280/221106. 2x 10G SFP+, 6 GbE LAN, and
    dedicated LAN for IPMI 2.07. VGA via BMC, 2 USB 3.0 ports8. Passive CPU heat sink and
    2x 40mm chassis fans9. DC power adapter


Product SKUs

SYS-E300-8D

  • SuperServer E300-8D (Black)



Motherboard


Super X10SDV-TP8F


Processor/Cache

CPU

  • Intel? Xeon? processor D-1518,
    2.2GHz; CPU TDP support 35W

  • FCBGA 1667

Cores / Cache

  • 4 Cores, 8 Threads / 6MB



System Memory

Memory Capacity

  • 4x DDR4 DIMM sockets

  • Supports up to 128GB DDR4 ECC RDIMM

  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM

Memory Type

  • 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes

  • 32GB, 16GB, 8GB, 4GB

Memory Voltage

  • 1.2 V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors
      (using ECC memory)



On-Board Devices

Chipset

  • System on Chip

SATA

  • SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe

Network Controllers

  • Dual 10G SFP+ from D-1500 SoC

  • Quad 1GbE with Intel I350-AM4

  • Dual 1GbE with Intel I210

IPMI

  • Support for Intelligent Platform Management Interface v.2.0

  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics 0
