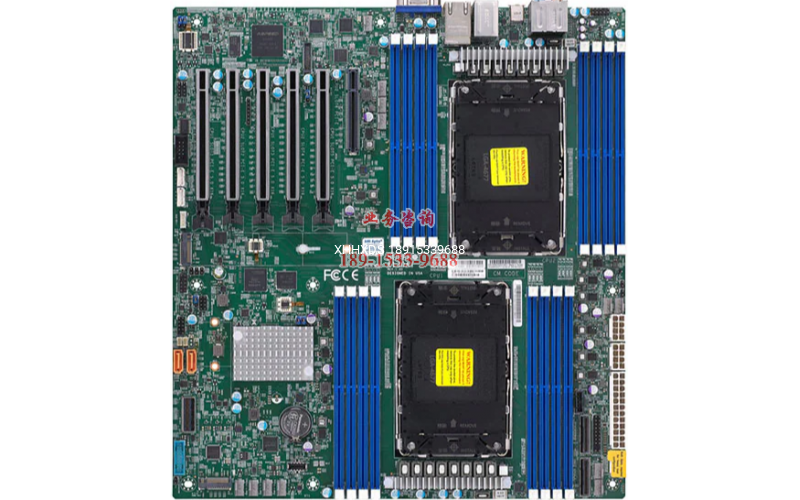

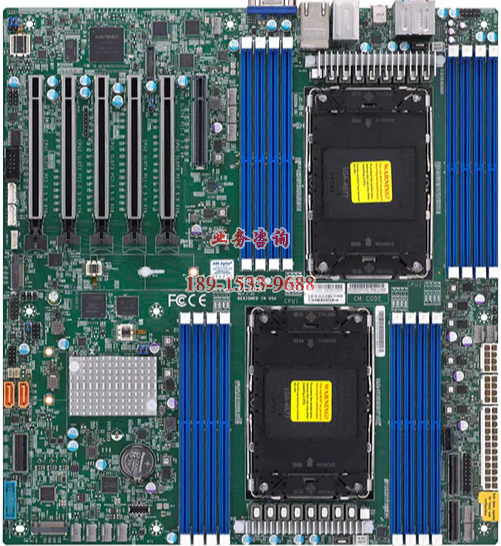

超微工作站主板双路 X13DAI-T 支持

超微工作站主板双路 X13DAI-T 支持

Key Features

4th Gen Intel? Xeon? Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
Support CXL
Intel? C741 Chipset
Up to 4TB 3DS ECC RDIMM, DDR5-4800MT/s(1DPC) in 16 DIMM slots
Broadcom BCM57416 Dual ports 10G LAN
2 SATA DOM ports
2 M.2
4 NVMe ports PCIe 5.0 x4 via 2 MCIO connectors
5 PCIe 5.0 x16
1 PCIe 5.0 x8
8 SATA 3.0 ports(C741, RAID 0, 1, 5, 10)
HD Audio 7.1 channel
1 USB 3.1 Gen 2, 6 USB 3.0

Product SKUs
MBD-X13DAI-T

Physical Stats
Form Factor	EATX
Dimension	12.1" x 13.1" (30.734cm x 33.274cm)

Processor
CPU	4th Gen Intel? Xeon? Scalable processors Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Core	Up to 60 cores

System Memory
Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type	4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) 256GB 4800MT/s
DIMM Sizes	16GB, 32GB, 64GB, 128GB, 256GB RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.1V
Error Detection	Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel? C741
SATA	8 SATA3 ports; RAID 0, 1, 5, 10 2 SATA3 ports; RAID 0,1
Audio	Realtek ALC888S
Network Controllers	Dual LAN with Broadcom BCM57416 10GBase-T

Input / Output
SATA	8 SATA3 (6Gbps) port(s) 2 SATA3 (6Gbps) port(s)
USB	2 USB 2.0 port(s) (2 via header) 6 USB 3.0 port(s) (4 rear type A; 2 via header) 1 USB 3.1 Gen2 port(s) (1 via header)
Video Output	1 VGA D-Sub Connector port(s)
TPM	TPM Chip
Others	2 MCIO PCIe 5.0 x8

<
