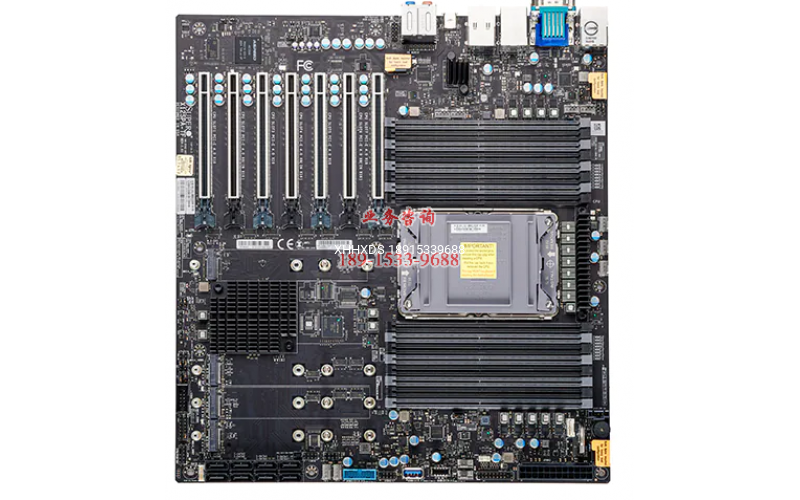

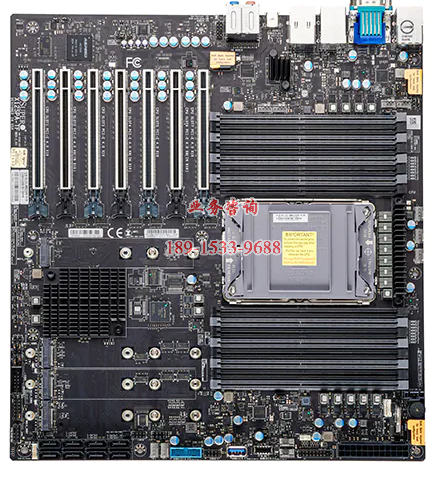

超微工作站主板 X12SPA-TF 支持至强 W-3300

超微工作站主板 X12SPA-TF 支持至强 W-3300


Key Features


    • 3rd Gen Intel? Xeon? Scalable processors, Intel? Xeon? W-3300 Processor

    • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

  2. Intel? C621A


    • Single LAN with Intel? Ethernet Controller I210-AT

    • Single LAN with Marvell AQC113

    • Single LAN with Realtek RTL8211F PHY (dedicated IPMI)


    • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz

    • Up to 4TB Intel? Optane? Persistent Memory, DDR4-3200MHz, in 16 DIMM slots


    • 4 PCIe 4.0 x16,

    • 3 PCIe 4.0 x8 (in x16 slot)

    • M.2 Interface: 4 PCIe 4.0 x4

    • M.2 Form Factor: 2260/2280/22110

    • M.2 Key: M-Key

    • M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.

  6. Intel? C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10


    • 1 VGA port,

    • VGA connector is dedicated for IPMI.

Product SKUs
MBD-X12SPA-TF
Physical Stats
Form Factor

  • E-ATX

Dimension

  • 13" x 12" (33.02cm x 30.48cm)

Processor
CPU

  • 3rd Gen Intel? Xeon? Scalable processors, Intel? Xeon? W-3300 Processor

  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Core

  • Up to 40 cores

System Memory
Memory Capacity

  • 16 DIMM slots

  • Up to 4TB Intel? Optane? Persistent Memory 200 Series, DDR4-3200MHz

  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

  • ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB

Memory Voltage

  • 1.2V

On-Board Devices
Chipset

  • Intel? C621A

SATA

  • Intel? C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500

Audio

  • ALC 888S HD Audio

Graphics

  • 1 ASPEED AST2500 BMC port(s)

  • VGA connector is dedicated for IPMI.

Network Controllers

  • Single LAN with Intel? Ethernet Controller I210-AT

  • Single LAN with Realtek RTL8211F PHY (dedicated IPMI)

  • Single LAN with Marvell AQC113

Input / Output
LAN

  • 1 RJ45 Dedicated IPMI LAN port

  • 1 RJ45 Gigabit Ethernet LAN ports

  • 1 RJ45 10GBase-T ports

USB
