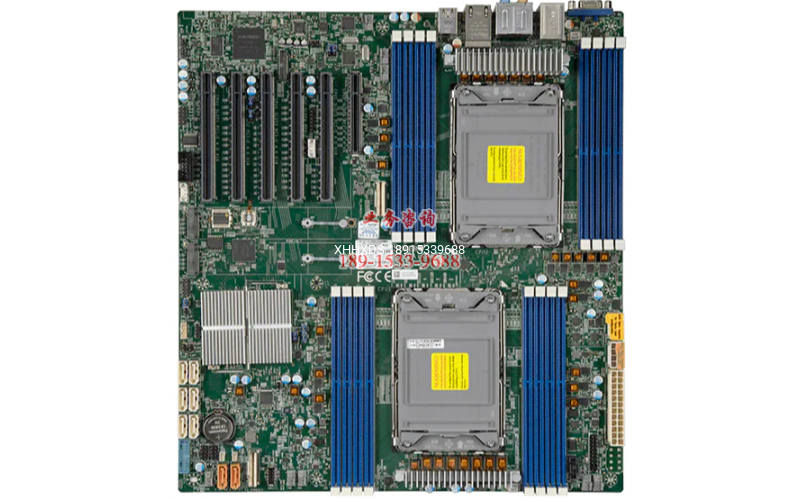

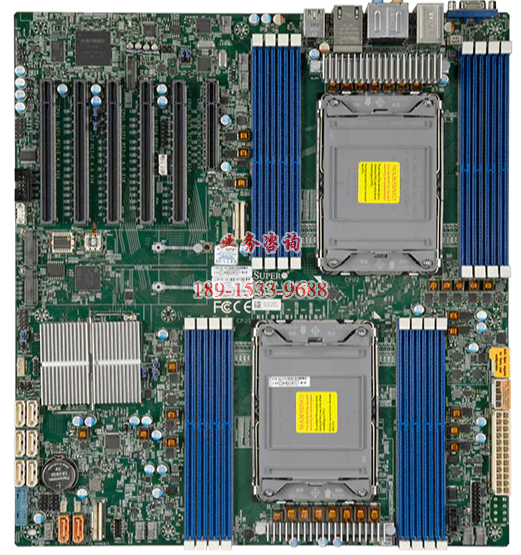

超微 服务器主板 X12DAI-N6 支持第三代至强 LGA4189

超微 服务器主板 X12DAI-N6 支持第三代至强 LGA4189


Key Features


    • 3rd Gen Intel? Xeon? Scalable processors

    • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

  2. Intel? C621A


    • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz

    • Up to 4TB Intel? Optane? Persistent Memory, DDR4-3200MHz, in 16 DIMM slots;


    • 5 PCIe 4.0 x16,

    • 1 PCIe 4.0 x8,

    • 4 PCIe 4.0 NVMe x4 Internal Port(s)

    • M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1

    • M.2 Form Factor: 2280/22110

    • M.2 Key: M-Key

  5. Intel? C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  6. Dual LAN with Intel? i210 Gigabit Ethernet Controller

  7. 1 VGA D-Sub Connector port

Product SKUs
MBD-X12DAI-N6
Physical Stats
Form Factor

  • E-ATX

Dimension

  • 12" x 13" (30.48cm x 33.02cm)

Processor
CPU

  • 3rd Gen Intel? Xeon? Scalable processors

  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

System Memory
Memory Capacity

  • 16 DIMM slots

  • Up to 4TB Intel? Optane? Persistent Memory 200 Series, DDR4-3200MHz

  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • Intel? C621A

SATA

  • Intel? C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2600 BMC

Audio

  • 7.1 HD Audio

Graphics

  • 1 ASPEED AST2600 BMC port(s)

Network Controllers

  • Dual LAN with Intel? i210 Gigabit Ethernet Controller

Input / Output
USB

  • 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)

  • 2 USB 3.2 Gen2 port(s) (1 via header; 1 rear type A)

Video Output

  • 1 VGA D-Sub Connector port(s)

Serial Port

  • 1 COM Port(s) (1 header)
