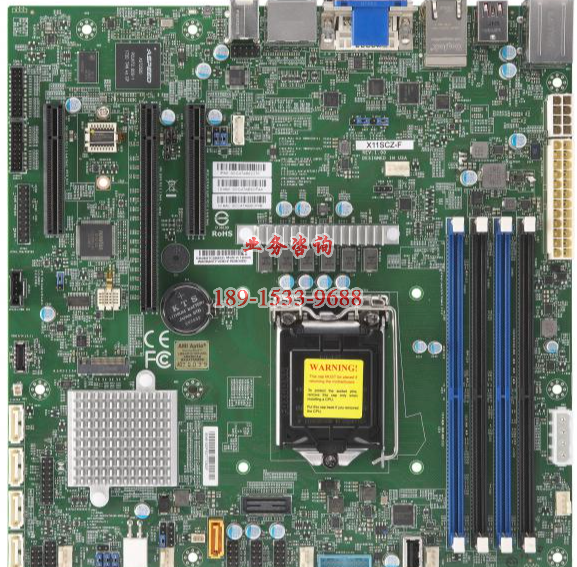

超微主板 X11SCZ-F 支持LGA 1151 支持志强 E2100.

超微主板 X11SCZ-F 支持LGA 1151 支持志强 E2100.

Key Features

8th/9th Generation Intel? Core? i9/Core? i7/Core?i5/Core?i3/Pentium?/Celeron? Processor, Intel? Xeon? E-2100 Processor, Intel? Xeon? E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

Intel? C246

Single LAN with Intel? Ethernet Controller I210-AT
Single LAN with Intel? PHY I219LM LAN controller

Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

1 PCIe 3.0 x16,
2 PCIe 3.0 x4 (in x8 slot)
1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110

Intel? C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10

1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays

Product SKUs
MBD-X11SCZ-F

Physical Stats
Form Factor	uATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU	8th/9th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3/Pentium?/Celeron? Processor, Intel? Xeon? E-2100 Processor, Intel? Xeon? E-2200 Processor Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP A graphic integrated CPU is required to have onboard video from the DVI and DP ports

System Memory
Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz
Memory Type	2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel? C246
SATA	Intel? C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Audio	ALC 888S HD Audio
Graphics	1 Intel? HD Graphics port(s) 1 ASPEED AST2500 BMC port(s) 3 Independent Displays
Network Controllers	Single LAN with Intel? PHY I219LM LAN controller Single LAN with Intel? Ethernet Controller I210-AT

Input / Output
