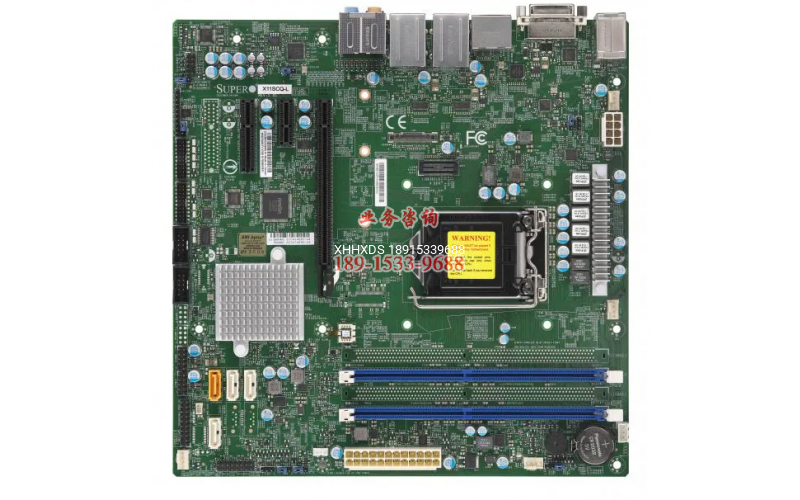

超微主板 X11SCQ-L 支持酷睿10-11代 LGA1151

超微主板 X11SCQ-L 支持酷睿10-11代 LGA1151


Key Features

  1. 8th/9th Generation Intel? Core? i9/Core? i7/Core?i5/Core?i3/Pentium?/Celeron? Processor
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

  2. Single LAN with Intel? Ethernet Controller I210-AT
    Single LAN with Intel? PHY I219LM LAN controller

  3. Intel? H310

  4. Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots

  5. 1 PCIe 3.0 x16
    1 PCIe 2.0 x4
    1 PCIe 2.0 x1

  6. Intel? H310 controller for 4 SATA3 (6 Gbps) ports;

  7. 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
    2 Independent Displays

Product SKUs
MBD-X11SCQ-L
Physical Stats
Form Factor

  • uATX

Dimension

  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU

  • 8th/9th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3/Pentium?/Celeron? Processor

  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP

System Memory
Memory Capacity

  • 2 DIMM slots

  • Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz

Memory Type

  • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin

DIMM Sizes

  • 4GB, 8GB, 16GB

Memory Voltage

  • 1.2V

On-Board Devices
Chipset

  • Intel? H310

SATA

  • Intel? H310 controller for 4 SATA3 (6 Gbps) ports

Audio

  • 7.1 HD Audio

Graphics

  • 1 Intel? HD Graphics port(s)

Network Controllers

  • Single LAN with Intel? PHY I219LM LAN controller

  • Single LAN with Intel? Ethernet Controller I210-AT

Input / Output
LAN

  • 2 RJ45 Gigabit Ethernet LAN ports

USB

  • 6 USB 2.0 port(s) (4 via header; 2 rear)

  • 4 USB 3.1 Gen1 port(s) (2 rear type A; 2 rear type C)

Video Output 0
