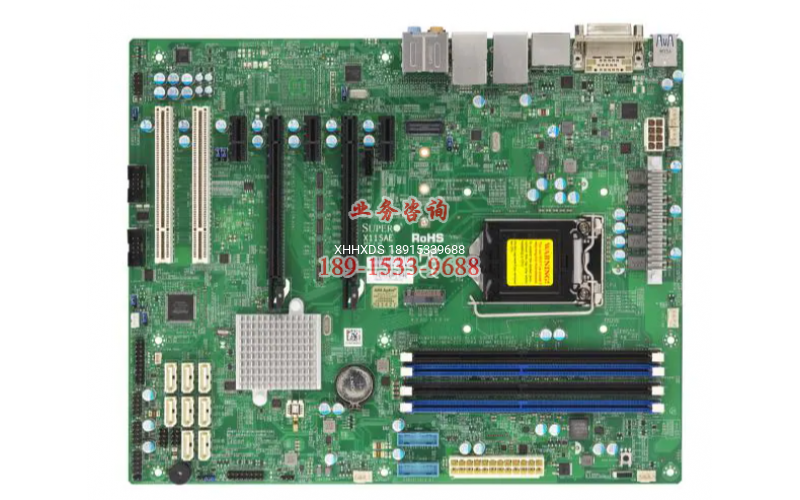

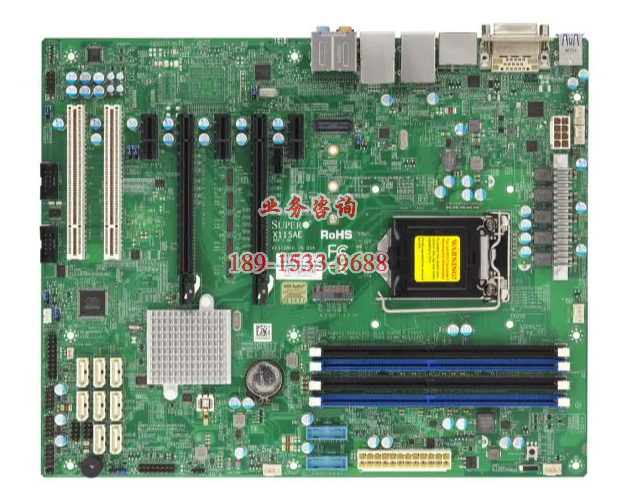

超微主板 X11SAE 支持酷睿8-9代 LGA1151

超微主板 X11SAE 支持酷睿8-9代 LGA1151

Key Features

Single socket H4 (LGA 1151) supports
Intel? Xeon? processor E3-1200 v5/v6,
Intel? 6th/7th Gen. Core? i7/i5/i3 series,
Intel? Celeron? and Intel? Pentium?

Intel? C236 chipset
Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
2 PCIe 3.0 x16 (run at 16/NA or 8/8), 3 PCIe 3.0 x1, and 2 5V PCI 32-bit slots
8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)

Single GbE LAN with Intel? i210-AT,
Single GbE LAN with Intel? i219LM

6 USB 3.0 (2 rear + 4 via header(s))
8 USB 2.0 (2 rear + 6 via header(s))
2 USB 3.1 (10Gbps, rear)

I/O: 2 COM, TPM header

Product SKUs
MBD-X11SAE

Physical Stats
Form Factor	ATX
Dimension	12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU	Intel? Xeon? processor E3-1200 v6/v5, Intel? 6th/7th Generation Core? i3 series, Intel? 6th/7th Generation Core? i5 series, Intel? 6th/7th Generation Core? i7 series Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3
Note	BIOS version 2.0 or above is required to support 7th Generation Intel? Core? i3 Processors and Intel? Xeon? Processor E3-1200 v6 series

System Memory
Memory Capacity	4 DIMM slots Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz
Memory Type	2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel? C236
SATA	Intel? C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 + 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support)
Audio	ALC 888S HD Audio
Network Controllers	Single LAN with Intel? PHY I219LM LAN controller Single LAN with Intel? Ethernet Controller I210-AT

Input / Output

USB

8 USB 2.0 port(s) (6 via header; 2 rear Type A)
