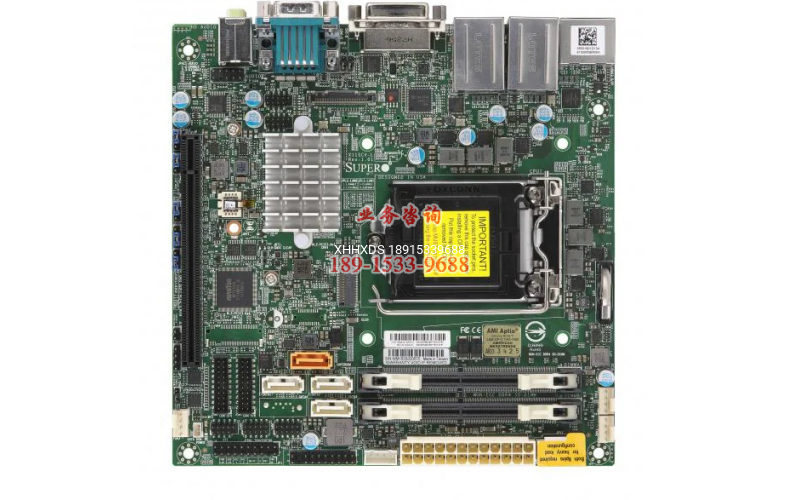

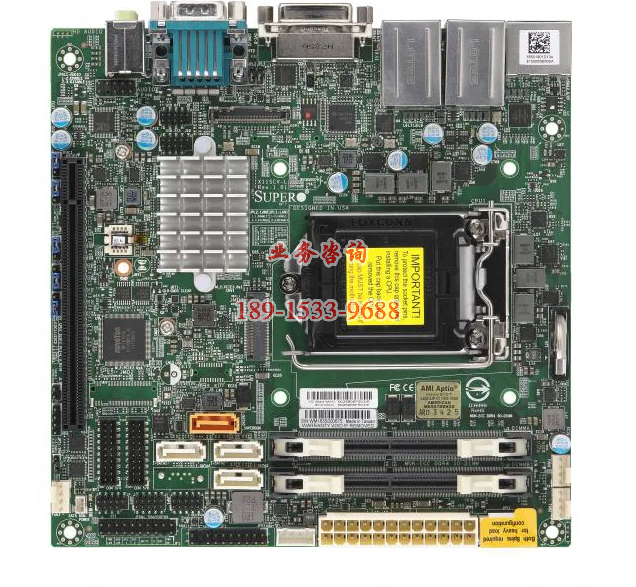

超微主板 X11SCV-L 支持酷睿10-11代 1151

超微主板 X11SCV-L 支持酷睿10-11代 1151


Key Features

  1. 8th/9th Generation Intel? Core? i9/Core? i7/Core?i5/Core?i3/Pentium?/Celeron? Processor
    Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 65W TDP

  2. Single LAN with Intel? PHY I219LM LAN controller
    Single LAN with Intel? Ethernet Controller I210-AT

  3. Intel? H310

  4. Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots

  5. 1 PCIe 3.0 x16
    1 M.2 E-Key PCIe 2.0 x1, 2230

  6. Intel? H310 controller for 4 SATA3 (6 Gbps) ports;
    Only I-SATA0 - I-SATA3

  7. 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
    2 Independent Displays

Product SKUs
MBD-X11SCV-L
Physical Stats
Form Factor

  • Mini-ITX

Dimension

  • 6.7" x 6.7" (17.02cm x 17.02cm)

Processor
CPU

  • 8th/9th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3/Pentium?/Celeron? Processor

  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 65W TDP

System Memory
Memory Capacity

  • 2 DIMM slots

  • Up to 32GB Unbuffered non-ECC SODIMM, DDR4-2666MHz

Memory Type

  • non-ECC DDR4 SODIMM Unbuffered

DIMM Sizes

  • 4GB, 8GB, 16GB

Memory Voltage

  • 1.2V

On-Board Devices
Chipset

  • Intel? H310

SATA

  • Intel? H310 controller for 4 SATA3 (6 Gbps) ports

Audio

  • ALC 888S HD Audio

Graphics

  • 1 Intel? HD Graphics port(s)

Network Controllers

  • Single LAN with Intel? PHY I219LM LAN controller

  • Single LAN with Intel? Ethernet Controller I210-AT

Input / Output
SATA

  • 4 SATA3 (6Gbps) port(s)

LAN

  • 2 RJ45 Gigabit Ethernet LAN ports

USB
