Key Features

  1. Single socket H4 (LGA 1151) supports
    Intel? Xeon? processor E3-1200 v5/v6,
    Intel? 6th/7th Gen. Core? i7/i5/i3 series,
    Intel? Celeron? and Intel? Pentium?

  2. Intel? C236 chipset

  3. Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

  4. 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)

  5. 2 PCIe 3.0 x16 (run at 16/NA or 8/8), 2 PCIe 3.0 x1, and 2 5V PCI 32-bit slots

  6. Single GbE LAN with Intel? i210-AT (Share with IPMI); single GbE LAN with Intel? i219LM

  7. 6 USB 3.0 (2 rear + 4 via header(s))
    6 USB 2.0 (2 rear + 4 via header(s))
    2 USB 3.1 (10Gbps, rear)

  8. I/O: 1 VGA, 2 COM, TPM header

Product SKUs

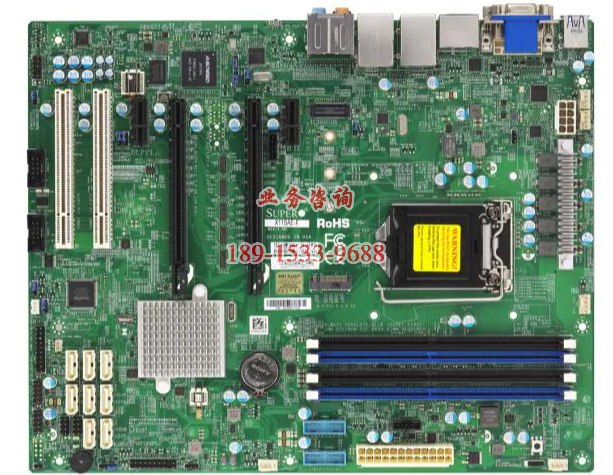

MBD-X11SAE-F
Physical Stats
Form Factor
  • ATX

Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU
  • Intel? Xeon? processor E3-1200 v6/v5, Intel? 6th/7th Generation Core? i3 series, Intel? 6th/7th Generation Core? i5 series, Intel? 6th/7th Generation Core? i7 series

  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP

System Memory
Memory Capacity
  • 4 DIMM slots

  • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz

Memory Type
  • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs

DIMM Sizes
  • 4GB, 8GB, 16GB

Memory Voltage
  • 1.2V

Error Detection
  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel? C236

SATA
  • Intel? C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Audio
  • ALC 888S HD Audio

Graphics
  • 1 ASPEED AST2400 BMC port(s)

Network Controllers
  • Single LAN with Intel? PHY I219LM LAN controller

  • Single LAN with Intel? Ethernet Controller I210-AT, (Share with IPMI)

Input / Output
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)

  • 2 USB 3.1 Gen2 port(s) (2 type A)

  • 6 USB 3.1 Gen1 port(s) (2 rear type A; 4 via header)
