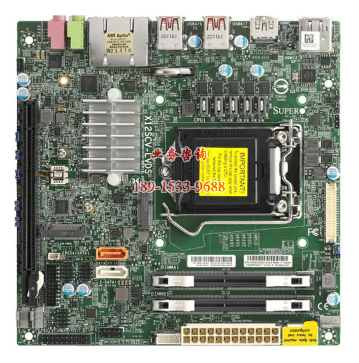

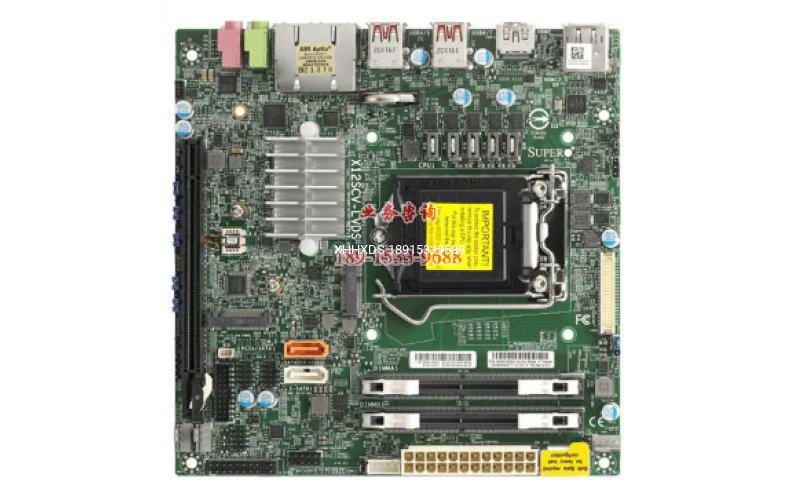

超微主板X12SCV-LVDS 支持酷睿10-11代 LGA1151

超微主板X12SCV-LVDS 支持酷睿10-11代 LGA1151


Key Features


    • 11th/10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3 Processor, Intel? Xeon? W-1200 Processors

    • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP


    • Single LAN with Intel? PHY I219LM LAN controller

    • Single LAN with Intel? Ethernet Controller I210-AT

  3. Intel? W480E

  4. Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots


    • 1 PCIe 3.0 x16 slots (16/NA or 8/8)

    • 1 M.2 M-Key PCIe 3.0 x4, 2242/2280

    • 1 M.2 E-Key CNVi/PCIe 3.0 x1/USB, 2230

  6. Intel? W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1


    • 2 HDMI ports, 1 DP (DisplayPort) port, 1 LVDS port,

    • 3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS

Product SKUs
MBD-X12SCV-LVDS
Physical Stats
Form Factor

  • Mini-ITX

Dimension

  • 6.7" x 6.7" (17.02cm x 17.02cm)

Processor
CPU

  • Intel? Xeon? W-1200 Processors, 11th/10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3 Processor

  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP

Core

  • Up to 10 cores

Note

  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
    **The X12SCV-LVDS does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.

System Memory
Memory Capacity

  • 2 DIMM slots

  • Up to 64GB ECC/non-ECC SODIMM, DDR4-2933MHz

Memory Type

  • 2933/2666/2400/2133 MT/s ECC/non-ECC DDR4 SODIMM

DIMM Sizes

  • 4GB, 8GB, 16GB, 32GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • Intel? W480E
