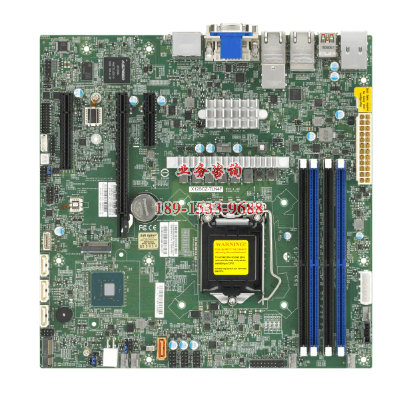

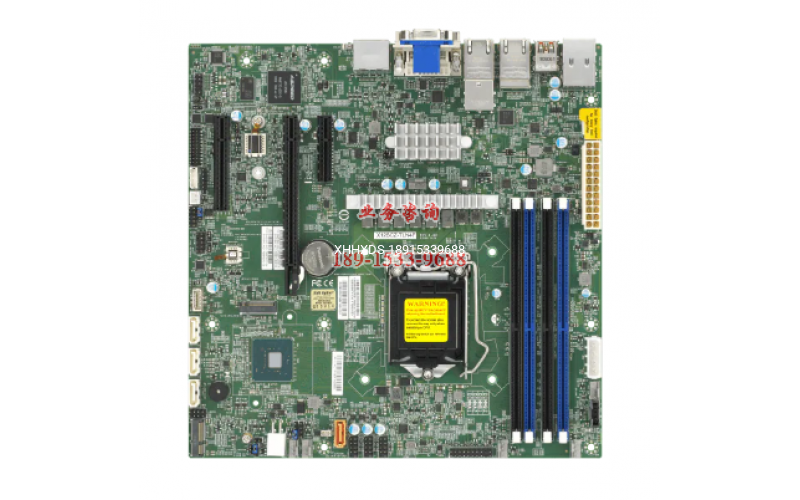

超微主板 X12SCZ-TLN4F 支持酷睿8-9代 LGA1151

超微主板 X12SCZ-TLN4F 支持酷睿8-9代 LGA1151


Key Features


    • 11th/10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3 Processor, Intel? Xeon? W-1200 Processors

    • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

  2. Intel? W480E

  3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots


    • 1 PCIe 3.0 x16,

    • 1 PCIe 3.0 x4 (in x8 slot),

    • 1 PCIe 3.0 x4

    • 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110

    • 1 M.2 E-Key CNVi/PCIe 3.0 x1, 2230

  5. Intel? W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10


    • Dual LAN with Intel? X550 10GBase-T Ethernet Controller

    • Single LAN with Intel? PHY I219LM LAN controller

    • Single LAN with Intel? Ethernet Controller I210-AT

  7. 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port

Product SKUs
MBD-X12SCZ-TLN4F
Physical Stats
Form Factor

  • Micro-ATX

Dimension

  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU

  • Intel? Xeon? W-1200 Processors, 11th/10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3 Processor

  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

  • A graphic integrated CPU is required to have onboard video from the DVI and DP ports

Core

  • Up to 10 cores

Note

  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
    **The X12SCZ does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.

System Memory
Memory Capacity

  • 4 DIMM slots

  • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz

Memory Type

  • 2933/2666/2400/2133 MT/s

DIMM Sizes

  • 4GB, 8GB, 16GB, 32GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • Intel? W480E

SATA

  • Intel? W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500

Audio

  • ALC 888S HD Audio
