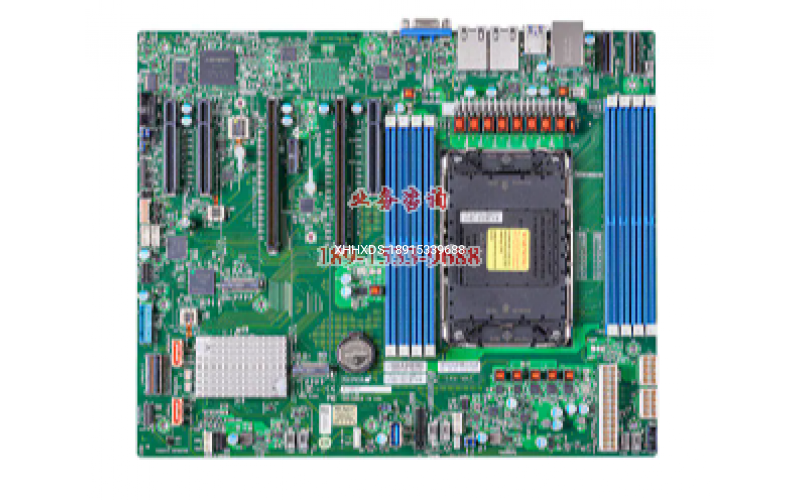

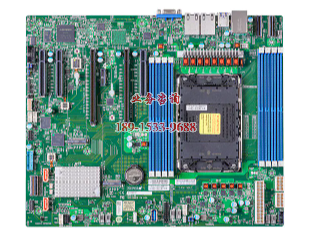

超微主板 X13SEI-F 支持第四代至强 LGA4677

超微主板 X13SEI-F 支持第四代至强 LGA4677


Key Features

  1. 4th Gen Intel? Xeon? Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP

  2. Intel C741? Chipset

  3. Up to 2TB 3DS ECC RDIMM, DDR5-4800MT/s (1DPC) in 8 DIMM slots

  4. 2 MCIO (PCIe5.0 x8) connectors for 4 NVMe SSDs

  5. 3 PCIe 5.0 x8,
    2 PCIe 5.0 x16,
    M.2 Interface: 2 PCIe 5.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key

  6. Dual LAN with 1GbE with Intel? I210

  7. 4 USB 3.2 Gen1 (2 rear, 1 Type-A, 1 via header), 2 USB 2.0 (2 rear)

  8. Intel? C741 controller for 10 SATA3 (6 Gbps) ports

Product SKUs
MBD-X13SEI-F
Physical Stats
Form Factor

  • EATX

Dimension

  • 12.3" x 10.1" (31.24cm x 25.65cm)

Processor
CPU
Core

  • Up to 60 cores

System Memory
Memory Capacity

  • 8 DIMM slots

  • Up to 2TB 3DS ECC RDIMM, DDR5-4800MHz

Memory Type

  • 4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)

DIMM Sizes

  • 16GB, 32GB, 64GB, 128GB, 256GB

  • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.1V

Error Detection

  • Corrects single-bit errors

On-Board Devices
Chipset

  • Intel? C741

SATA

  • Intel? C741 controller for 10 SATA3 (6 Gbps) ports

IPMI
