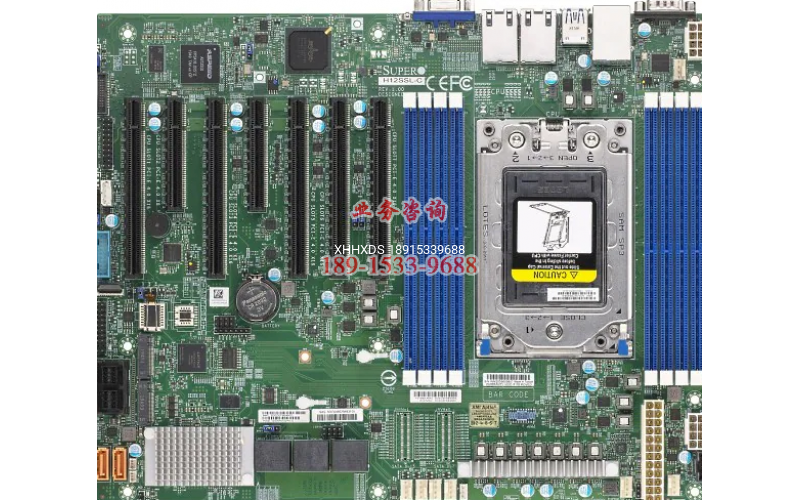

超微主板 H12SSi-C 支持ADM SP3 CPU

超微主板 H12SSi-C 支持ADM SP3 CPU


Key Features1.Single AMD EPYC 7003/7002 Series Processor
(The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache? Technology requires BIOS version 2.3 or newer)2.2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs3.Expansion slots:
?5 PCI-E 4.0 x16
?2 PCI-E 4.0 x8
?M.2 Interface: 2 PCI-E 4.0 x4
?M.2 Form Factor: 2280, 22110
?M.2 Key: M-key
4.8 SATA3, Broadcom 3008 SAS3 (12 Gbps) controller for 8 SAS3 ports, 2 M.25.2 Gigabit Ethernet LAN Ports6.ASPEED AST2500 BMC graphics7.Up to 6 USB 3.0 ports
?(4 rear + 2 via header)8.7 PWM 4-pin Fans with tachometer status monitoring
Product SKUs

MBD-H12SSL-C

  • H12SSL-C

MBD-H12SSL-C-O

  • H12SSL-C (Retail Pack)



Physical Stats

Form Factor

  • ATX

Dimensions

  • 12" x 9.6" (30.5cm x 24.4cm)



Processor/Chipset

CPU

  • Single AMD EPYC 7003/7002 Series Processor
    (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache? Technology requires BIOS version 2.3 or newer)

  • Socket SP3

Cores

  • Up to 64 Cores

Chipset

  • System on Chip



System Memory

Memory Capacity

  • 8 DIMM slots

  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM

  • 8-channel memory bus

Memory Type

  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes

  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)



On-Board Devices
