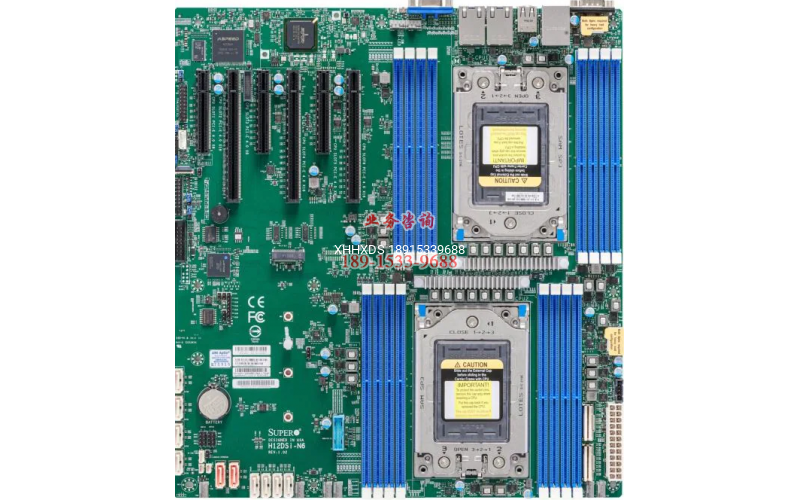

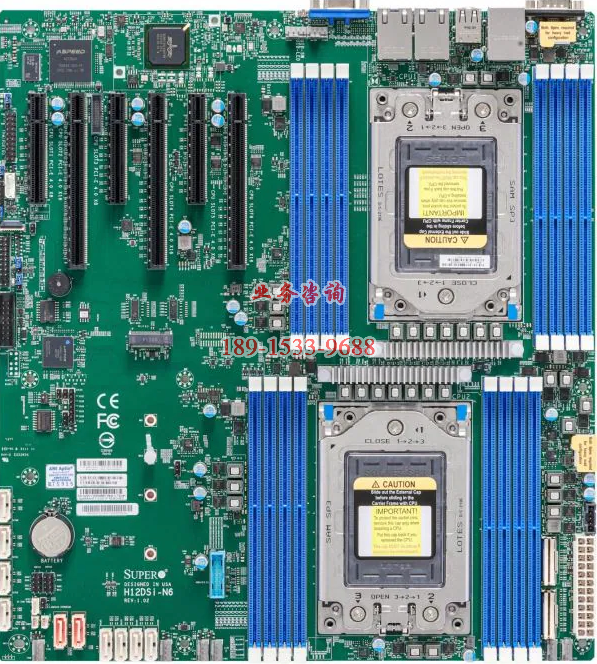

超微主板 H12DSI-N6 支持AMD SP3 CPU

超微主板 H12DSI-N6 支持AMD SP3 CPU


Key Features1.Dual AMD EPYC 7003/7002 Series Processors
(The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache? Technology requires BIOS version 2.3 or newer)2.4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs3.Expansion slots:
3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots
M.2 Interface: 1 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
4.10 SATA3, 2 SATADOM, 4 NVMe5.Dual Gigabit LAN ports,
1 dedicated IPMI LAN Port6.ASPEED AST2600 BMC graphics7.2 USB 2.0 ports (rear),
4 USB 3.0 ports (2 rear, 2 headers)8.8x 4-pin PWM Fans & Speed control
Product SKUs

MBD-H12DSi-N6

  • H12DSi-N6



Physical Stats

Form Factor

  • EATX

Dimensions

  • 12" x 13.05" (30.5cm x 33.1cm)



Processor/Chipset

CPU

  • Dual AMD EPYC 7003/7002 Series Processors
    (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache? Technology requires BIOS version 2.3 or newer)

  • Socket SP3

Cores

  • Up to 64 Cores

Chipset

  • System on Chip



System Memory

Memory Capacity

  • 16 DIMM slots

  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM

  • 8-channel memory bus

  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks

Memory Type

  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes

  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)



On-Board Devices

SATA

  • SATA3 (6 Gbps)

0
0
