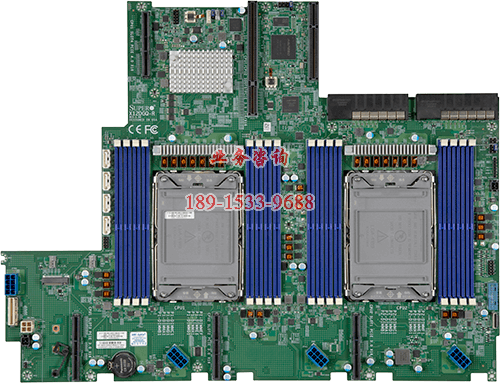

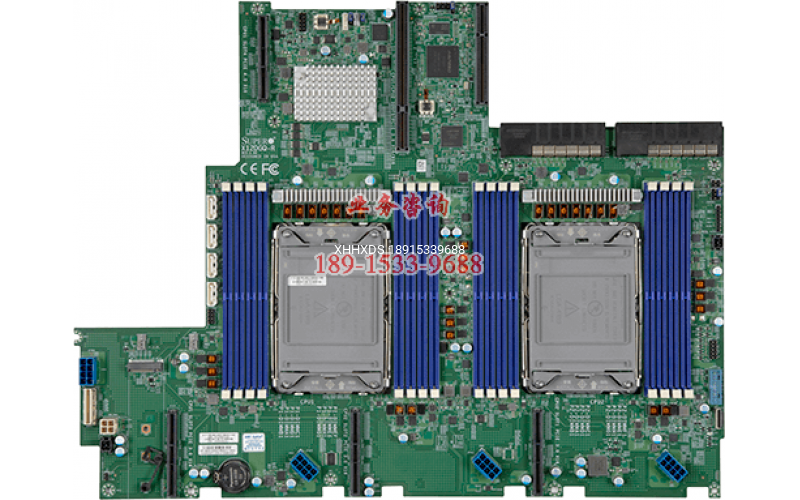

超微主板X12DGQ-R

超微主板X12DGQ-R

图片关键词

Key Features

  1. 3rd Gen Intel? Xeon? Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

  2. Intel? C621A

  3. Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB LRDIMM, DDR4-3200MHz
    Up to 4TB Intel? Optane? Persistent Memory 200 Series, DDR4-3200MHz (OC), in 16 DIMM slots

  4. 1 PCI-Express 4.0 x32 riser supporting x16/x16,
    4 PCI-Express 4.0 x16 slots,
    1 PCI-Express 4.0 x4 M.2 slot
    M.2 Form Factor: 2242/2260/2280/22110
    M.2 Key: M-Key
    1 PCI-Express 4.0 x8 SlimSAS ports supporting two NVME drives

  5. Intel? C621A controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  6. 1 VGA D-Sub Connector port


Product SKUs

MBD-X12DGQ-R

  • X12DGQ-R



Physical Stats

Form Factor

  • Proprietary

Dimension

  • 16.9" x 12.9" (42.93cm x 32.77cm)



Processor

CPU

  • 3rd Gen Intel? Xeon? Scalable processors

  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

Core

  • Up to 40 cores



System Memory

Memory Capacity

  • 16 DIMM slots

  • Up to 4TB Intel? Optane? Persistent Memory 200 Series, DDR4-3200MHz

  • Up to 4TB ECC LRDIMM, DDR4-3200MHz; Up to 4TB ECC RDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666MHz ECC DDR4 LRDIMM, RDIMM

DIMM Sizes

  • 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset

  • Intel? C621A

SATA

  • Intel? C621A controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2600 BMC
