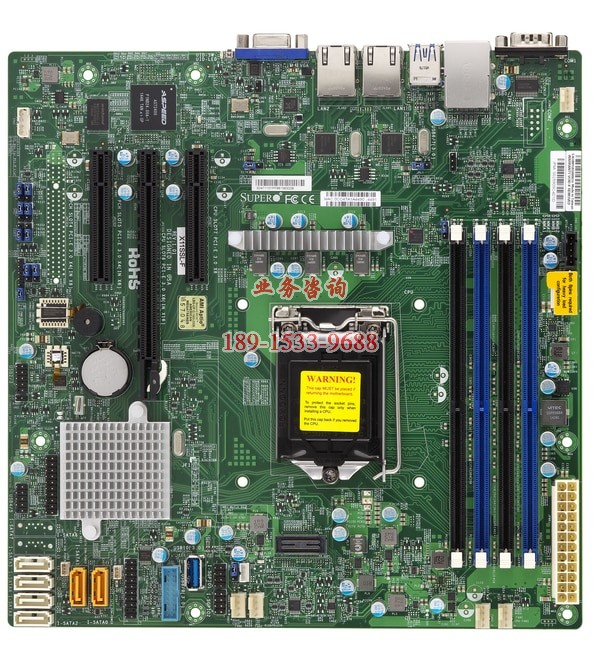

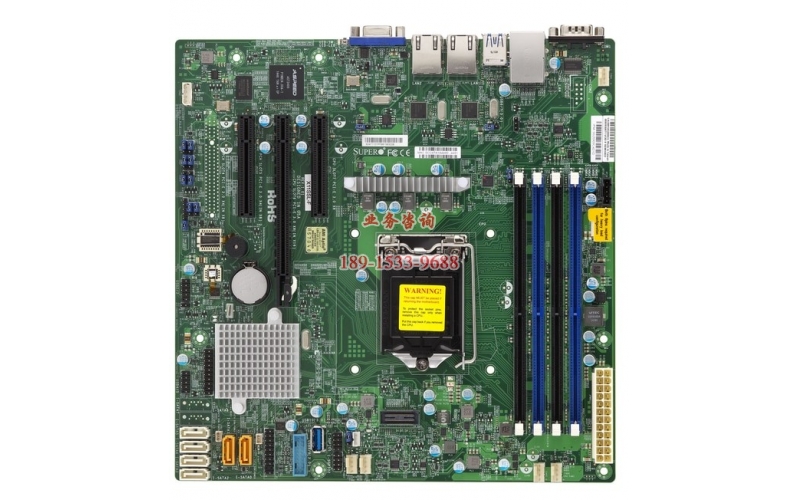

超微主板X11SSL-F

超微主板X11SSL-F

图片关键词

Key Features

  1. Single socket H4 (LGA 1151) supports Intel? Xeon? processor E3-1200 v6/v5, Intel? 7th/6th Gen. Core? i3 series,
    Intel? Celeron? and Intel? Pentium?

  2. Intel? C232 chipset

  3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

  4. Expansion slots:
    1 PCI-E 3.0 x8 (in x16),
    1 PCI-E 3.0 x8,
    1 PCI-E 3.0 x4 (in x8)

  5. Dual GbE LAN with Intel? i210-AT

  6. 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10

  7. Integrated IPMI 2.0 and KVM with Dedicated LAN

  8. 2 SuperDOM with built-in power

  9. 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

  10. I/O: 1 VGA, 1 COM, TPM header

Product SKUs

MBD-X11SSL-F

  • X11SSL-F



Physical Stats

Form Factor

  • Micro-ATX

Dimension

  • 9.6" x 9.6" (24.38cm x 24.38cm)



Processor

CPU

  • Intel? Celeron?, Intel? Pentium?, Intel? 7th/6th Generation Core i3 series, Intel? Xeon? processor E3-1200 v6/v5

  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP

Note

  • BIOS version 2.0 or above is required to support 7th Generation Intel? Core? i3 Processors and Intel? Xeon? Processor E3-1200 v6 series



System Memory

Memory Capacity

  • 4 DIMM slots

  • 64GB ECC UDIMM, DDR4-2400MHz

Memory Type

  • 2400/2133/1866/1600MHz SDRAM 72-bit, 288-pin gold-plated DIMMs

DIMM Sizes

  • 4GB, 8GB, 16GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors



On-Board Devices

Chipset

  • Intel? C232

SATA

  • Intel? C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2400 BMC
