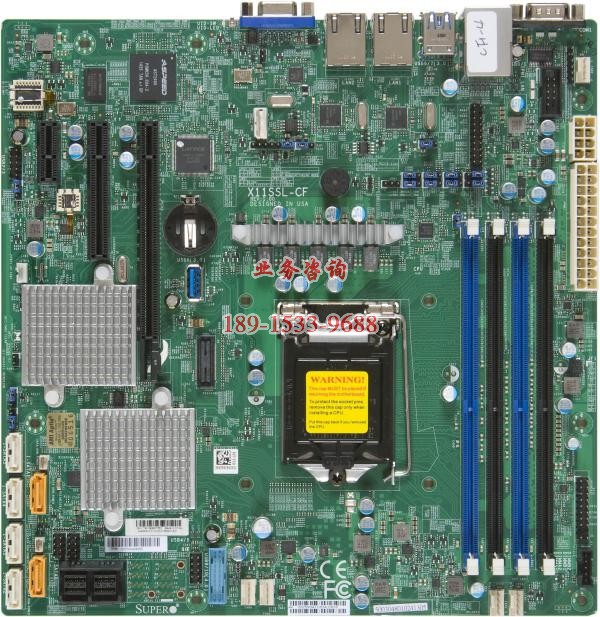

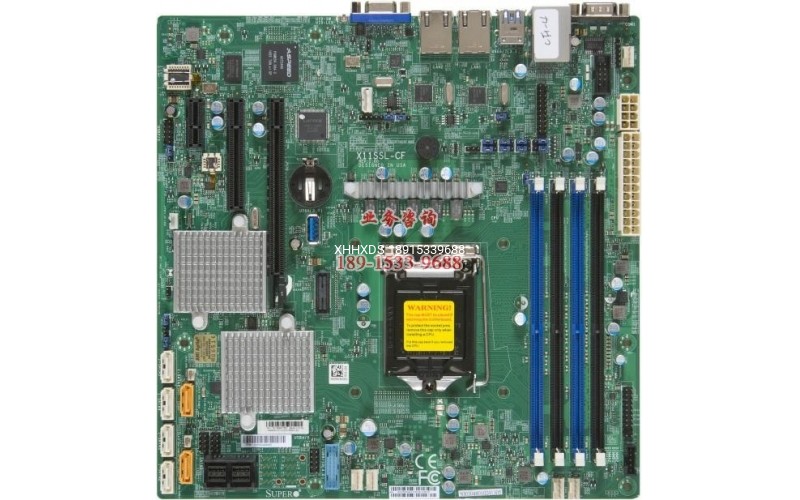

超微主板X11SSL-CF

Key Features

1. Single socket H4 (LGA 1151) supports Intel? Xeon? processor E3-1200 v6/v5, Intel? 7th/6th Gen. Core? i3 series,
   Intel? Celeron? and Intel? Pentium?

2. Intel? C232 chipset

3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

4. Expansion slots:
   1 PCI-E 3.0 x8 (in x16),
   1 PCI-E 3.0 x4 (in x8),
   1 PCI-E 3.0 x1

5. Dual GbE LAN with Intel? i210-AT

6. 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10

7. 8 SAS3 (12Gbps) via Broadcom? 3008 SW controller; RAID 0, 1, 10

8. I/O: 1 VGA, 2 COM, TPM header

9. 2 SuperDOM with built-in power

10. 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A),
    6 USB 2.0 (2 rear, 4 via header(s))
