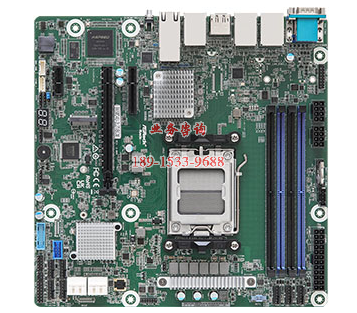

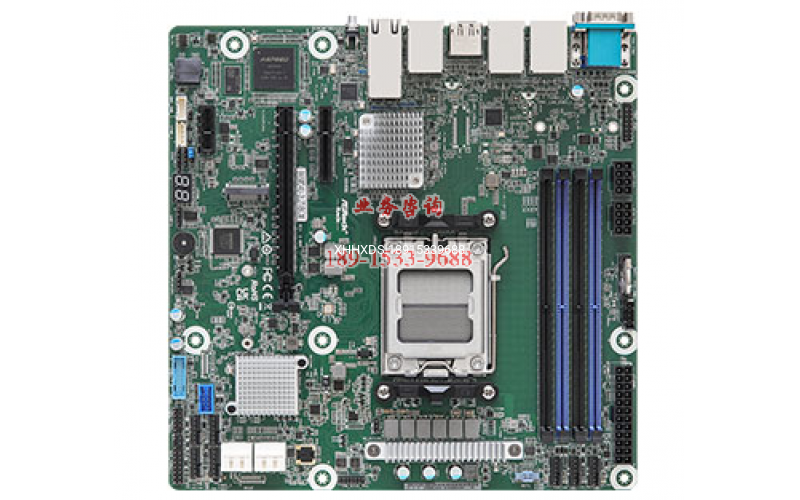

微型自动识别器 （9.6“x 9.6”）
支持 AMD 锐龙 7000 系列处理器
4 个内存插槽 （2DPC），支持 DDR5 ECC/非 ECC UDIMM
1 个 PCIe5.0 x16， 1 个 PCIe5.0 x4， 1 个 PCIe4.0 x1
支持 1 个 M.2 （PCIe5.0 x4）
2 RJ45 （10GbE） by Broadcom BCM57416
2 RJ45 （1GbE） 通过英特尔? i210
4 个 SATA 6Gb/s
1 个 HDMI，1 个显示端口
远程管理 （IPMI）
| 物理信息 | |
| 型式 | Micro-ATX |
| 尺寸 | 9.6" x 9.6" |
| 处理器系统 | |
| CPU | Supports AMD Ryzen 7000 series Processors |
| 插槽 | Single Socket AM5 (LGA 1718) |
| 电源设计 | 120W (Air)/170W (Liquid) |
| 芯片组 | AMD B650E |
| 系统内存 | |
| 容量 | 4 DIMM slots (2DPC) |
| 类型 | DDR5 288-pin ECC/non-ECC UDIMM |
| 每个DIMM支持的 DIMM 尺寸 | 32GB |
| Max. DIMM Frequency | 5200 MHz (1DPC); 3600 MHz (2DPC) |
| 电压 | 1.1V |
| 扩展插槽 | |
| PCIe x 16 | SLOT6: PCIe5.0 x16 [CPU] |
| PCIe x 4 | SLOT7: PCIe5.0 x4 [CPU] |
| PCIe x 1 | SLOT4: PCIe4.0 x1 [FCH] |
| 存储 | |
| SATA 控制器 | AMD B650E (4 SATA 6Gb/s): 4 SATA 7-pin |
| M.2 | 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU] |
| 以太网 | |
| Additional GbE Controller | Broadcom BCM57416: 2 RJ45 (10GbE) Intel? i210: 2 RJ45 (1GbE) |
| 管理功能 | |
| BMC 控制器 | ASPEED AST2600 |
| IPMI 独立 GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| 显示 | |
| 控制器 | ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header AMD Processors with Graphics: 1 HDMI, 1 DisplayPort |
| 后侧面板 I/O 接口 | |
| VGA 接口 | 1 DB15 (VGA), 1 DisplayPort, 1 HDMI |
| USB 3.0 接口 | 4 Type-A (USB3.2 Gen1) |
| 网络接口 | 2 RJ45 (10GbE) 2 RJ45 (1GbE) 1 dedicated IPMI |
| 串口 | 1 DB9 (COM) |
| UID Button/UID LED | 1 UID button w/ LED |
| 内置接口 | |
| 电源接口 | 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| 前置局域网 LED 连接器 | 1 |
| 辅助面板接头 | 1 (18-pin): chassis intrusion, system fault LED, LAN activity LED |
| TPM 接口 | 1 (13-pin, SPI) |
| IPMB 接口 | 1 |
| VGA 接口 | 1 |
| 蜂鸣器 | 1 |
| 风扇接口 | 7 (6-pin) |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| 扬声器 | 1 |
| BMC_SMB Header | 1 |
| Clear CMOS | 1 |
| Others | 1 (3-pin, 80 debug port header) |
| 板载 LED | |
| Standby PWR LED 5vsb | 1 (5VSB) |
| Port 80 LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
| 系统 BIOS | |
| BIOS 类型 | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS 功能 | Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
| 硬件监控 | |
| 温度 | CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot |
| 风扇 | Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| 电压 | VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| 使用环境 | |
| 温度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
