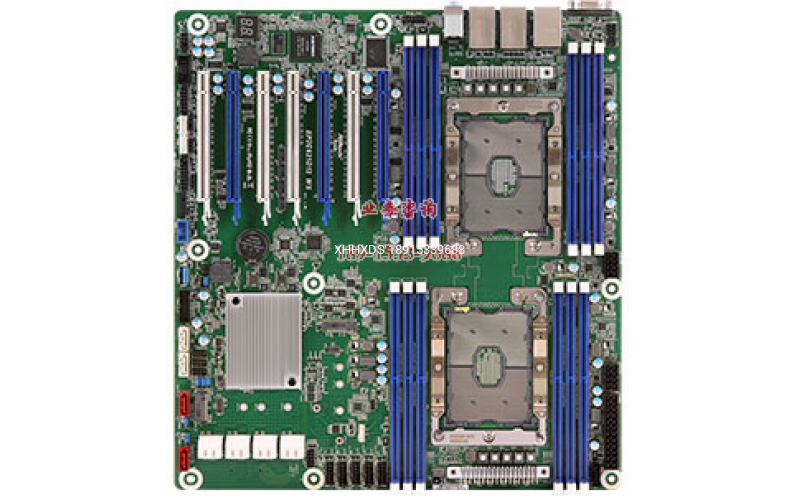

EEB 12 英寸 x 13 英寸
支持双 Sockep P、第二代英特尔至强可扩展处理器/英特尔??至强??可扩展处理器
支持 DDR4 2933*/2666/2400/2133 R DIMM & LR DIMM，12 x DIMM 插槽
通过英特尔? C621 支持 14 个 SATA3 6.0 Gb/s（包括 2 个 SATA DOM 端口和 2 个 M.2 端口）
支持 5 个 PCIe3.0x16， 2 个 PCIe3.0 x8
| 物理信息 | |
| 型式 | - EEB |
| 尺寸 | - 12'' x 13'' (305 mm x 330 mm) |
| 处理器系统 | |
| CPU | - Supports 2nd Gen. Intel? Xeon? Scalable Processors / Intel? Xeon? Scalable Processors |
| 插槽 | - Dual Socket LGA-3647 |
| 芯片组 | - Intel C621 |
| 系统内存 | |
| 容量 | - 12 x 288-pin DDR4 DIMM slots - Support up to 64GB DDR4 R DIMM/LR DIMM/NVDIMM |
| 类型 | - 6 Channel memory technology - Support DDR4 R DIMM/LR DIMM /NVDIMM |
| 每个DIMM支持的 DIMM 尺寸 | - R/LR DIMM: 32GB, 16GB, 8GB, 4GB - NVDIMM: 64GB, 32GB |
| Max. DIMM Frequency | - R DIMM: 2933/2666/2400/2133 MHz - LR DIMM: 2933/2666/2400/2133 MHz - NVDIMM: 2933/2666/2400/2133 MHz *DDR4 2933 memory is supported only when using the Intel? Cascade Lake CPU and Intel? Cascade Lake BIOS. |
| 电压 | - 1.2V |
| 扩展插槽 | |
| PCIe x 16 | - SLOT7: PCIe3.0 x16 [CPU0] - SLOT6: PCIe3.0 x16 [CPU1] - SLOT5: PCIe3.0 x16 [CPU0] - SLOT4: PCIe x16 (PCIe3.0 x8) [CPU1] - SLOT3: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied [CPU1] - SLOT2: PCIe x16 (PCIe3.0 x8) [CPU0] - SLOT1: PCIe3.0 x16 [CPU1] |
| M.2 | - 2 (2230/2242/2260/2280, support PCIE(x4) or SATA3 M.2) |
| 存储 | |
| SATA 控制器 | - Intel? C621: 14x SATA3 (including 2 SATA DOM ports and 2 M.2 ports) - M.2: 2 (M2_1: support PCIE(x4), from CPU1) & SATA3 6.0Gb/s, form factor: 2230, 2242, 2260, 2280), M2_2: support PCIE(x4) from PCH & SATA3 6.0 Gb/s form factor: 2230, 2242, 2260, 2280) |
| 以太网 | |
| 接口 | - Gigabit LAN |
| Additional GbE Controller | - 4 x RJ45 GLAN by Marvell 88E1543 (1000Mb/s) - 1 x RJ45 Dedicated IPMI LAN port - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE - LAN1 Supports NCSI |
| 管理功能 | |
| BMC 控制器 | - ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm and vMedia support |
| IPMI 独立 GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| 功能 | - Watch Dog - NMI |
| 显示 | |
| 控制器 | - ASPEED AST2500 |
| 显存 | - DDR4 256Mb |
| 音頻 | |
| 音频编解码器 | - Realtek ALC892 |
| 后侧面板 I/O 接口 | |
| VGA 接口 | - 1 x D-Sub |
| USB 3.0 接口 | - 2 |
| 网络接口 | - 4+1(IPMI) RJ45 Gigabit Ethernet LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| 音頻 | - 3 |
| 内置接口 | |
| 电源接口 | - 1 (24-pin) + 1 (8-pin) + 1 (8-pin) |
| 串口连接插座 | - 1 |
| 前置局域网 LED 连接器 | - 1 |
| 辅助面板接头 | - 1 (includes chassis intrusion, location button & LED, front LAN LED) |
| TPM 接口 | - 1 |
| IPMB 接口 | - 1 |
| VGA 接口 | - 1 |
| 风扇接口 | - 7 Fans(CPU1/CPU2/4Front/1Rear)) |
| USB 3.2 (Gen1) 连接头 | - 1 ( support 2 ports USB 3.0) |
| USB 2.0 连接头 | - 1 ( support 2 USB 2.0) |
| A 型 USB 3.2 (Gen1) 连接头 | - 1 |
| NMI Header | - 1 |
| System Panel | - 1 |
| 扬声器 | - 1(4pin) |
| BMC_SMB Header | - 1 |
| SGPIO Header | - 1 |
| VROC KEY | - 1 |
| Clear CMOS | <|
