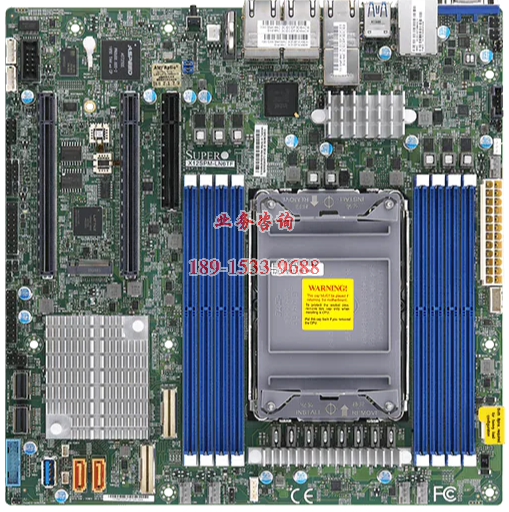

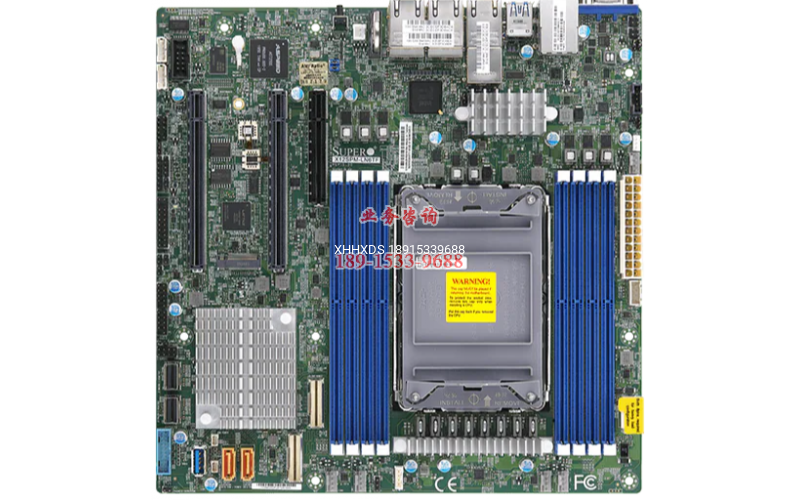

超微工作站主板 X12SPM-LN6TF 支持LGA4189 第三代至强

超微工作站主板 X12SPM-LN6TF 支持LGA4189 第三代至强


Key Features

  1. 3rd Gen Intel? Xeon? Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

  2. Intel? C621A


    • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz

    • Up to 2TB Intel? Optane? Persistent Memory 200 Series, in 8 DIMM slots


    • 1 PCIe 4.0 x8,

    • 2 PCIe 4.0 x16,

    • 4 PCIe 4.0 NVMe x4 Internal Port(s)

    • M.2 Interface: 1 SATA/PCIe 3.0 x4

    • M.2 Form Factor: 2280, 22110

    • M.2 Key: M-Key

  5. 4x NVMe port PCIe 4.0 x4 via SlimSAS connector

  6. Intel? C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10


    • Quad LAN with 1GbE with Intel? I350-AM4

    • Dual LAN with 10GBase-T with Intel? X550

  8. Supports 12V DC power input

  9. 5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)

Product SKUs
MBD-X12SPM-LN6TF
Physical Stats
Form Factor

  • microATX

Dimension

  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU

  • 3rd Gen Intel? Xeon? Scalable processors

  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Core

  • Up to 40 cores

System Memory
Memory Capacity

  • 8 DIMM slots

  • Up to 2TB Intel? Optane? Persistent Memory 200 Series

  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

  • ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • LRDIMM 3DS: 128GB, 256GB

  • LRDIMM: 64GB, 128GB

  • RDIMM: 8GB, 16GB, 32GB, 64GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

On-Board Devices
Chipset

  • Intel? C621A

SATA

  • Intel? C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2600 BMC

Graphics

  • 1 ASPEED AST2600 BMC port(s)

Network Controllers

  • Quad LAN with 1GbE with Intel? I350-AM4

  • Dual LAN with 10GBase-T with Intel? X550

Input / Output
SATA

  • 10 SATA3 (6Gbps) port(s)

LAN

  • 2 RJ45 10 Gigabit Ethernet LAN ports

  • 4 RJ45 Gigabit Ethernet LAN ports

USB
