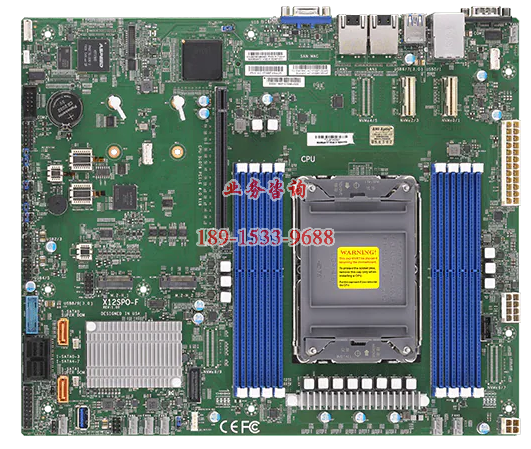

超微工作站主板 X12SOP-F 支持第三代至强 LGA4189

超微工作站主板 X12SOP-F 支持第三代至强 LGA4189


Key Features

  1. 3rd Gen Intel? Xeon? Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

  2. Intel? C621A


    • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz

    • Up to 2TB Intel? Optane? Persistent Memory, in 8 DIMM slots


    • 1 PCIe 4.0 x16,

    • 2 PCIe 4.0 NVMe x8 Internal Port(s)

    • M.2 Interface: 2 SATA/PCIe 3.0 x4

    • M.2 Form Factor: 2280/22110

    • M.2 Key: M-Key

  5. Intel? C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  6. Dual LAN with Intel? i350 Gigabit Ethernet Controller

  7. Supports 4x NVMe drives via SlimSAS connectors

Product SKUs
MBD-X12SPO-F
Physical Stats
Form Factor

  • ATX

Dimension

  • 12" x 10" (30.48cm x 25.4cm)

Processor
CPU

  • 3rd Gen Intel? Xeon? Scalable processors

  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Core

  • Up to 40 cores

System Memory
Memory Capacity

  • 8 DIMM slots

  • Up to 2TB Intel? Optane? Persistent Memory 200 Series

  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

On-Board Devices
Chipset

  • Intel? C621A

SATA

  • Intel? C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2600 BMC

Graphics

  • 1 ASPEED AST2600 BMC port(s)

Network Controllers

  • Dual LAN with Intel? i350 Gigabit Ethernet Controller

Input / Output
SATA

  • 10 SATA3 (6Gbps) port(s)

LAN

  • 2 RJ45 Gigabit Ethernet LAN ports

USB

  • 6 USB 2.0 port(s) (4 via header; 2 rear)

  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)

Video Output 0
0
