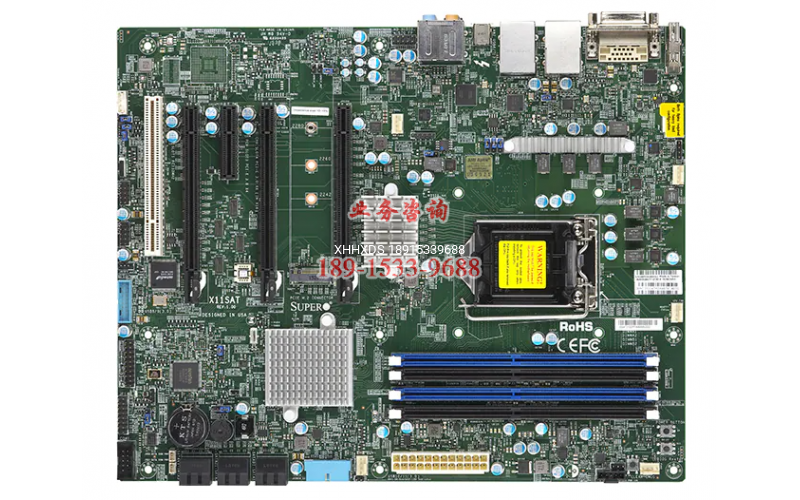

超微服务器主板 X11SAT 支持1151 规格

超微服务器主板 X11SAT 支持1151 规格


Key Features

  1. Single socket H4 (LGA 1151) supports
    Intel? Xeon? processor E3-1200 v5/v6,
    Intel? 6th/7th Gen. Core? i7/i5/i3 series,
    Intel? Celeron? and Intel? Pentium?

  2. Intel? C236 chipset

  3. Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

  4. 3 PCIe 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCIe 3.0 x1 (in x4), and 1 5V PCI 32-bit slots

  5. 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

  6. M.2 NGFF connector

  7. Single GbE LAN with Intel? i210-AT,
    Single GbE LAN with Intel? i219LM

  8. 6 USB 3.0 (2 rear + 4 via header(s)) ,
    4 USB 2.0 (2 rear + 2 via header(s)),
    1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)

  9. I/O: 1 COM, TPM heade

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X11SAT
Physical Stats
Form Factor

  • ATX

Dimension

  • 12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU

  • Intel? Xeon? processor E3-1200 v6/v5, Intel? 6th/7th Generation Core? i3 series, Intel? 6th/7th Generation Core? i5 series, Intel? 6th/7th Generation Core? i7 series

  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP

System Memory
Memory Capacity

  • 4 DIMM slots

  • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz

Memory Type

  • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs

DIMM Sizes

  • 4GB, 8GB, 16GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • Intel? C236

SATA

  • Intel? C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Audio

  • ALC 888S HD Audio

Network Controllers

  • Single LAN with Intel? Ethernet Controller I210-AT, + Single Intel Ethernet PHY i219LM

Input / Output
USB

  • 4 USB 2.0 port(s) (2 rear; 2 via header)

  • 6 USB 3.1 Gen1 port(s) (2 rear; 4 via header)

  • 1 USB 3.1 Gen2 port(s) (1 rear type C)

Video Output

  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)

Serial Port
