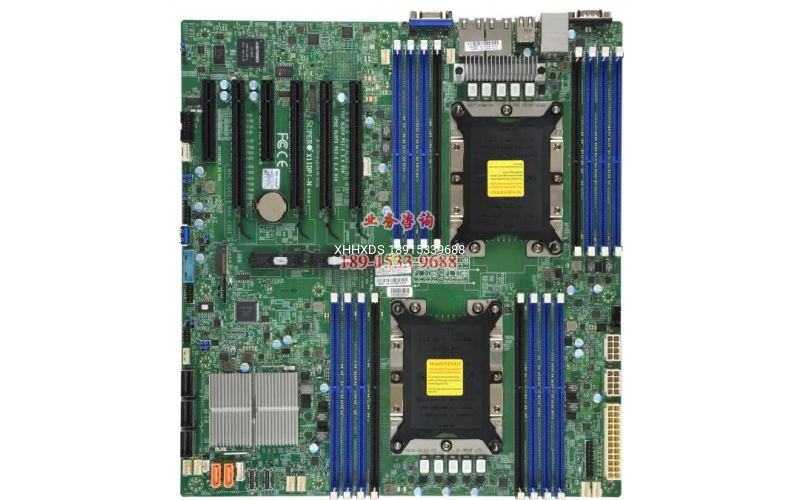

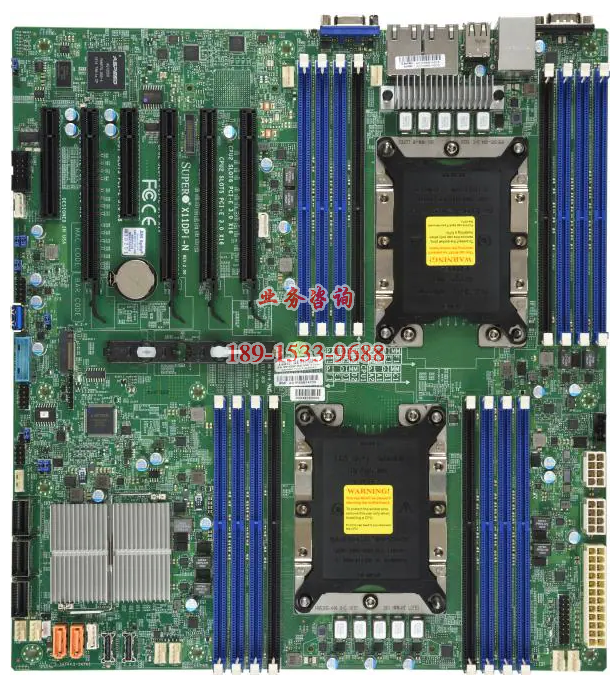

超微X11DPI-NT 支持志强第一代 LGA 3647

超微X11DPI-NT 支持志强第一代 LGA 3647


Key Features


    • 2nd Gen Intel? Xeon? Scalable Processors and Intel? Xeon? Scalable Processors

    • Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

  2. Intel? C622


    • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz

    • Or 2TB Intel? PMem, DDR4-2666MHz, in 16 DIMM slots;

    • Up to 2TB Intel? Optane? DC Persistent Memory in memory mode (Cascade Lake only);



    • 4 PCIe 3.0 x16,

    • 2 PCIe 3.0 x8,

    • 2 PCIe 3.0 NVMe x4 Internal Port(s)

    • M.2 Interface: PCIe 3.0 x4

    • M.2 Form Factor: 2260, 2280, 22110

    • M.2 Key: M-Key

  5. Intel? C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  6. Dual LAN with 10GBase-T with Intel? X722 + X557

  7. 1 VGA port

Product SKUs
MBD-X11DPI-NT
Physical Stats
Form Factor

  • E-ATX

Dimension

  • 12" x 13" (30.48cm x 33.02cm)

Processor
CPU

  • 2nd Gen Intel? Xeon? Scalable Processors and Intel? Xeon? Scalable Processors

  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s

Core

  • Up to 28 cores

Note

  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

System Memory
Memory Capacity

  • 16 DIMM slots

  • Up to 2TB Intel? Optane? Persistent Memory 200 Series, DDR4-2666MHz

  • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz

  • Up to 2TB Intel? Optane? DC Persistent Memory in memory mode (Cascade Lake only)

Memory Type

  • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • LRDIMM: 128GB

  • RDIMM: 64GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • Intel? C622

SATA

  • Intel? C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500

Graphics

  • 1 ASPEED AST2500 BMC port(s)

Network Controllers
