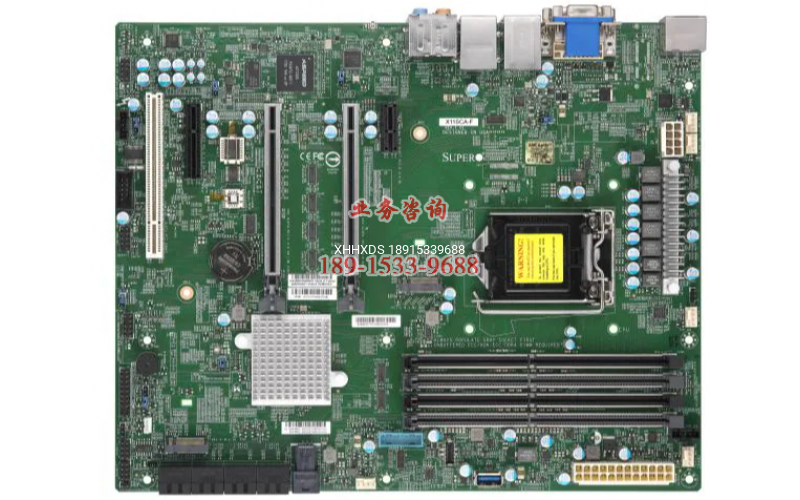

超微 主板 X11SCA-F 支持酷睿10-11代 LGA 1151

Key Features

1. 8th/9th Gen Intel? Core? i9/i7/i5/i3, Pentium? and Celeron? Processors, Intel? Xeon? E-2100 Processors, Intel? Xeon? E-2200 Processors, Single LGA-1151 (Socket H4), Up to 95W TDP

2. Intel? C246

3.


• Single LAN with Intel? Ethernet Controller I210-AT

• Shared with IPMI

• Single LAN with Intel? PHY I219LM LAN controller

•


4. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

5.


• 1 PCIe 3.0 x4,

• 1 PCIe 3.0 x1,

• 2 PCIex16 slots are running at NA/16, or 8/8

•


• 1 - 5V PCI 32bit

• M.2 Interface: 2 PCIe 3.0 x4

• M.2 Form Factor: 2242/2260/2280/22110

• M.2 Key: M-Key

• M.2#1 is shared with PCIex4 slot, M.2#2 is shared with U.2

• U.2 Interface: 1 PCIe 3.0 x4

6. Intel? C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

7.


• 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,

• Intel UHD P630 graphic(For Xeon E-21xxG/E-22xxG series only)
