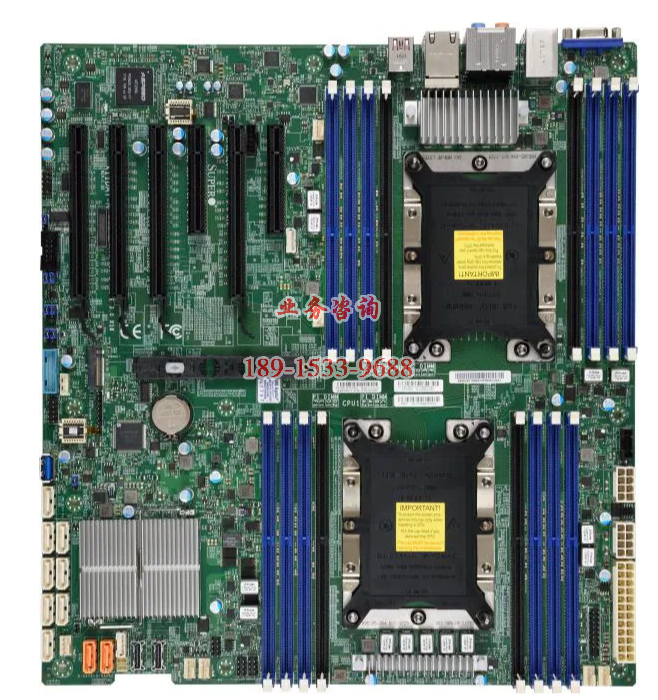

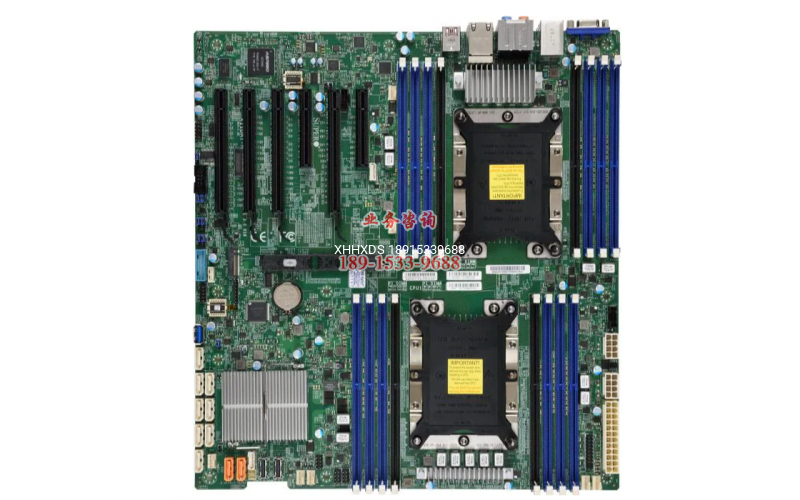

超微主板 X11DAI-N 支持志强第一代 LGA3647

超微主板 X11DAI-N 支持志强第一代 LGA3647

Key Features

2nd Gen Intel? Xeon? Scalable Processors and Intel? Xeon? Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

Intel? C621

Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel? Optane? DC Persistent Memory in memory mode (Cascade Lake only).

4 PCIe 3.0 x16,
2 PCIe 3.0 x8,
2 PCIe 3.0 NVMe x4 Internal Port(s)
M.2 Interface: PCIe 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key

Intel? C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with GbE from C621
1 VGA port

.

Product SKUs
MBD-X11DAi-N

Physical Stats
Form Factor	E-ATX
Dimension	12" x 13" (30.48cm x 33.02cm)

Processor
CPU	2nd Gen Intel? Xeon? Scalable Processors and Intel? Xeon? Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s

System Memory
Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz Up to 2TB Intel? Optane? DC Persistent Memory in memory mode (Cascade Lake only).
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	LRDIMM: 64GB, 128GB RDIMM: 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel? C621
SATA	Intel? C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Audio	7.1 HD Audio
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with GbE from C621

Input / Output
