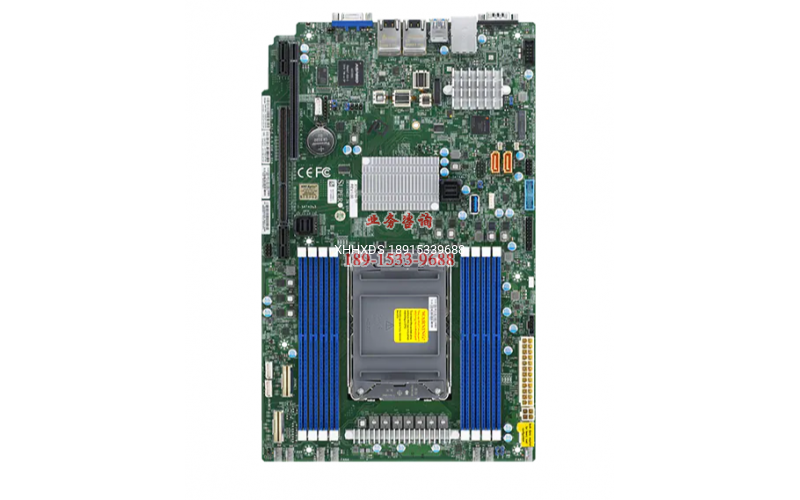

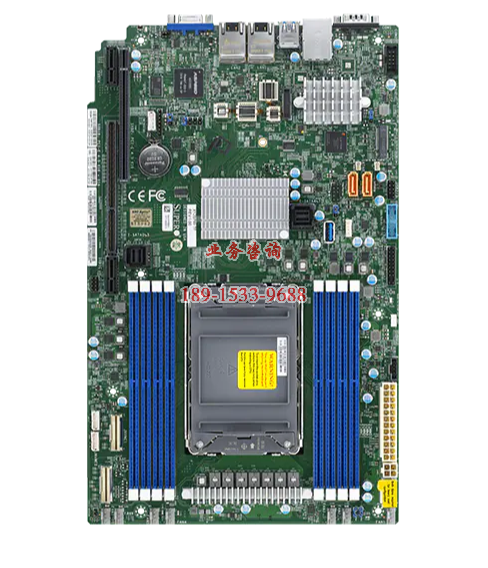

超微主板 X12SPW-TF 支持志强第三代LGA4189

超微主板 X12SPW-TF 支持志强第三代LGA4189

Key Features

3rd Gen Intel? Xeon? Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel? C621A

Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel? Optane? Persistent Memory 200 Series, in 8 DIMM slots

1 PCIe 4.0 x16 Right Riser Slot,
1 PCIe 4.0 x32 Left Riser Slot,
4 PCIe 4.0 NVMe x4 Internal Port(s)
M.2 Interface: PCIe 3.0 x4 and SATA
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key

Intel? C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 10GBase-T with Intel? X550
I/O: 1 VGA, 2 COM, TPM header
2 SuperDOM with built-in power

Product SKUs
MBD-X12SPW-TF

Physical Stats
Form Factor	Proprietary WIO
Dimension	8" x 13" (20.32cm x 33.02cm)

Processor
CPU	3rd Gen Intel? Xeon? Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core	Up to 40 cores

System Memory
Memory Capacity	8 DIMM slots Up to 2TB Intel? Optane? Persistent Memory 200 Series Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type	ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	LRDIMM 3DS: 128GB, 256GB LRDIMM: 64GB, 128GB RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	Intel? C621A
SATA	Intel? C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	Dual LAN with 10GBase-T with Intel? X550

Input / Output

SATA
