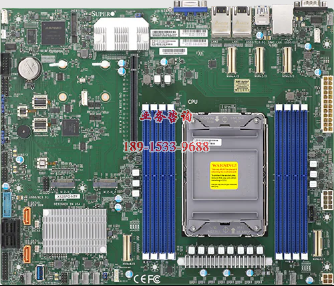

超微主板 X12SPO-NTF 支持至强第三代 LGA4189

超微主板 X12SPO-NTF 支持至强第三代 LGA4189

Key Features

3rd Gen Intel? Xeon? Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel? C621A

Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel? Optane? Persistent Memory, in 8 DIMM slots

1 PCIe 4.0 x16,
5 PCIe 4.0 NVMe x8 Internal Port(s)
M.2 Interface: 2 SATA/PCIe 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

Intel? C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with Intel? X550 10GBase-T Ethernet Controller
Supports 10x NVMe drives via SlimSAS connectors

Product SKUs
MBD-X12SPO-NTF

Physical Stats
Form Factor	ATX
Dimension	12" x 10" (30.48cm x 25.4cm)

Processor
CPU	3rd Gen Intel? Xeon? Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core	Up to 40 cores

System Memory
Memory Capacity	8 DIMM slots Up to 2TB Intel? Optane? Persistent Memory 200 Series Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type	3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	Intel? C621A
SATA	Intel? C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	Dual LAN with Intel? X550 10GBase-T Ethernet Controller

Input / Output

SATA

0

0
