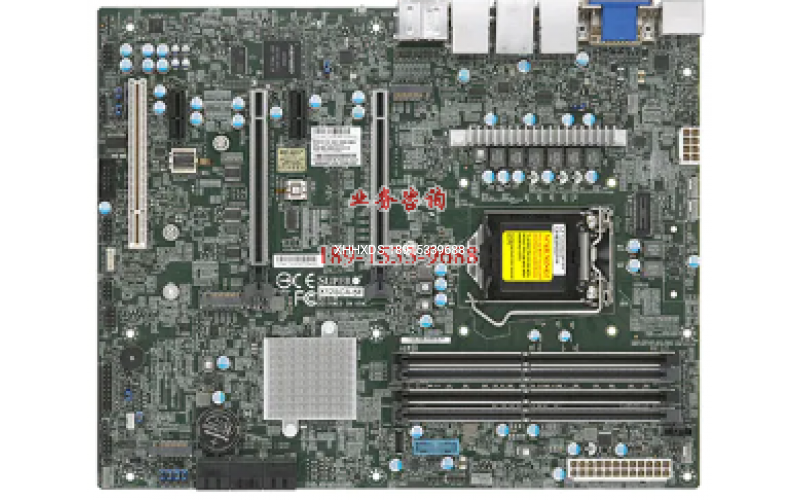

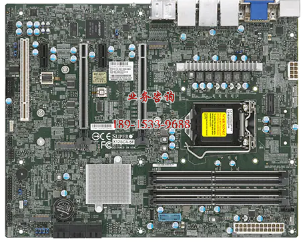

超微主板 X12SCA-SF 支持酷睿8-9代LGA1151

超微主板 X12SCA-SF 支持酷睿8-9代LGA1151


Key Features


    • 10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3/Pentium?/Celeron? Processor, 11th Generation Intel? Core? i5/i7/i9 Processors, Intel? Xeon? W-1200 Processors, Intel? Xeon? W-1300 Processors

    • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

  2. Intel? W580


    • Single LAN with Intel? Ethernet i225LM

    • Single LAN with Intel? PHY I219LM LAN controller

    • for AMT/vPro

    • Single LAN with RTL8211

    • Dedicated LAN for IPMI

  4. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots

Product SKUs
MBD-X12SCA-5F
Physical Stats
Form Factor

  • ATX

Dimension

  • 12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU
Core

  • Up to 10 cores

System Memory
Memory Capacity

  • 4 DIMM slots

  • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz

Memory Type

  • 128GB 3200MHz

DIMM Sizes

  • 2GB, 4GB, 8GB, 16GB, 32GB

Memory Voltage

  • 1.2V

On-Board Devices
Chipset

  • Intel? W580

SATA

  • Intel? W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500 BMC

Audio

  • ALC 888S HD Audio

Network Controllers

  • Single LAN with Intel? PHY I219LM LAN controller, for AMT/vPro

  • Single LAN with Intel? Ethernet i225LM

  • Single LAN with Realtek RTL8211F PHY (dedicated IPMI), Dedicated LAN for IPMI

Input / Output
LAN

  • 1 RJ45 Dedicated IPMI LAN port

  • 1 RJ45 Gigabit Ethernet LAN ports

  • 1 RJ45 2.5 Gigabit Ethernet LAN port
