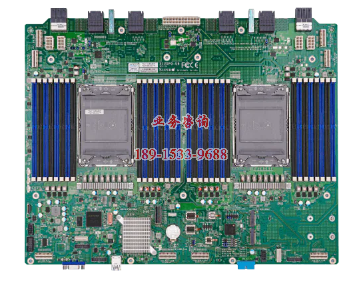

超微双路主板 X12DPG-U6 支持第三代至强 LGA4189

超微双路主板 X12DPG-U6 支持第三代至强 LGA4189


Key Features


    • 3rd Gen Intel? Xeon? Scalable processors.

    • Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

  2. Intel? C621A


    • Up to 8TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 8TB 3DS ECC LRDIMM, DDR4-3200MHz

    • Up to 8GB Unbufferred ECC Intel? Optane? Persistent Memory, DDR4-2933MHz, in 32 DIMM slots


    • 8 PCIe 4.0 x16

    • M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1

    • M.2 Form Factor: 2280/22110

  5. Intel? C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  6. 1 VGA D-Sub Connector port

Product SKUs
MBD-X12DPG-U6
Physical Stats
Form Factor

  • Proprietary

Dimension

  • 13.98" x 11.81" (35.51cm x 30cm)

Processor
CPU

  • 3rd Gen Intel? Xeon? Scalable processors

  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

System Memory
Memory Capacity

  • 32 DIMM slots

  • Up to 8GB Unbuffered Intel? Optane? Persistent Memory 200 Series, DDR4-2933MHz

  • Up to 8TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 8TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • 16GB, 32GB, 64GB, 128GB, 256GB

  • LRDIMM: 128GB, 256GB

  • RDIMM: 64GB, 128GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • Intel? C621A

SATA

  • Intel? C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2600 BMC

Graphics

  • 1 ASPEED AST2600 BMC port(s)

Network Controllers

  • N/A

Input / Output
USB

  • 3 USB 3.2 Gen1 port(s) (2 rear; 1 via header)

Vi
