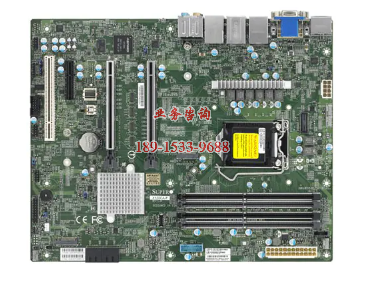

超微主板 X12SCA-F 支持酷睿8-9代 LGA1151

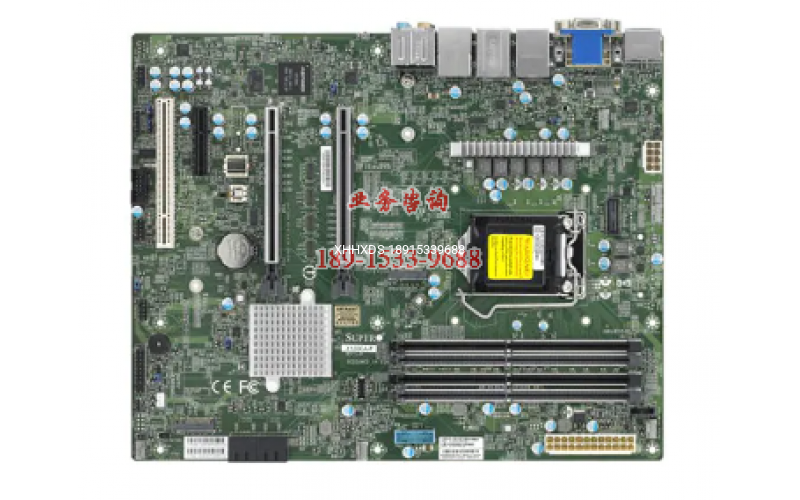

超微主板 X12SCA-F 支持酷睿8-9代 LGA1151


Key Features


    • 10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3/Pentium? Processor, Intel? Xeon? W-1200 Processors

    • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

  2. Intel? W480


    • Single LAN with Intel? PHY I219LM LAN controller

    • for AMT/vPro

    • Single LAN with Intel? Ethernet i225LM

  4. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots


    • 1 PCIe 3.0 x4,

    • 2 PCIe 3.0 x16 slots (16/NA or 8/8)

    • 1 - 5V PCI 32bit


    • M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1

    • M.2 Form Factor: 2280/22110

    • M.2 Key: M-Key

  6. Intel? W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10


    • 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port,

    • VGA port is dedicated for IPMI

Product SKUs
MBD-X12SCA-F
Physical Stats
Form Factor

  • ATX

Dimension

  • 12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU

  • Intel? Xeon? W-1200 Processors, 10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3/Pentium?/Celeron? Processor

  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

Core

  • Up to 10 cores

System Memory
Memory Capacity

  • 4 DIMM slots

  • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz

Memory Type

  • Up to 128GB of ered memory with speeds of up to 2933MHz (2DPC)

DIMM Sizes

  • 2GB, 4GB, 8GB, 16GB, 32GB

Memory Voltage

  • 1.2V

On-Board Devices
Chipset

  • Intel? W480

SATA

  • Intel? W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500

Audio

  • ALC 888S HD Audio

Graphics

  • VGA port is dedicated for IPMI

Network Controllers

  • Single LAN with Intel? Ethernet i225LM

  • Single LAN with Intel? PHY I219LM LAN controller, for AMT/vPro
