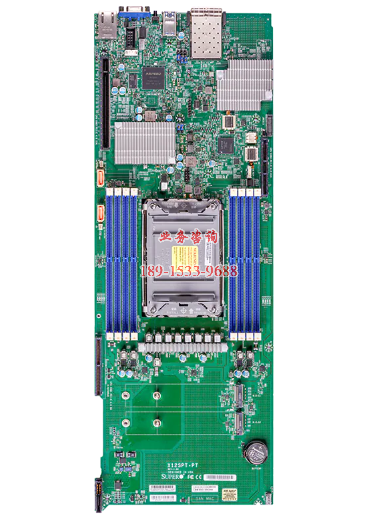

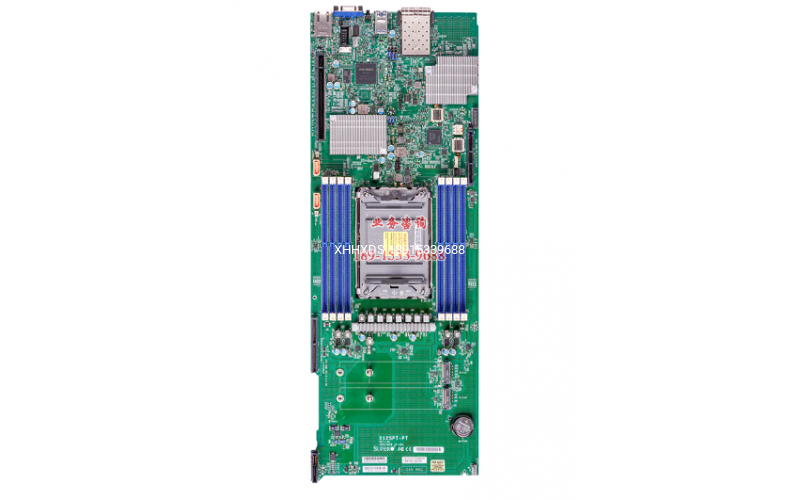

超微X12SPT-pT 支持第三代至强 LGA 4189

超微X12SPT-pT 支持第三代至强 LGA 4189

Key Features

3rd Gen Intel? Xeon? Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Intel? C621A

Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel? Optane? Persistent Memory 200 Series, in 8 DIMM slots

1 PCIe 4.0 x16 Left Riser Slot,
1 PCIe 4.0 x16 Right Riser Slot,
1 PCIe 4.0 x8 Proprietary Storage adapter Slot

Intel? C621A controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 10G SFP+
1 VGA port

Product SKUs
MBD-X12SPT-PT

Physical Stats
Form Factor	Proprietary
Dimension	6.8" x 18.86" (17.27cm x 47.9cm)

Processor
CPU	3rd Gen Intel? Xeon? Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core	Up to 40 cores

System Memory
Memory Capacity	8 DIMM slots Up to 2TB Intel? Optane? Persistent Memory 200 Series, DDR4-3200MHz Up to 2TB ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB LRDIMM: 32GB, 64GB, 128GB, 256GB RDIMM: 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	Intel? C621A
SATA	Intel? C621A controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	Dual LAN with 10G SFP+

Input / Output
