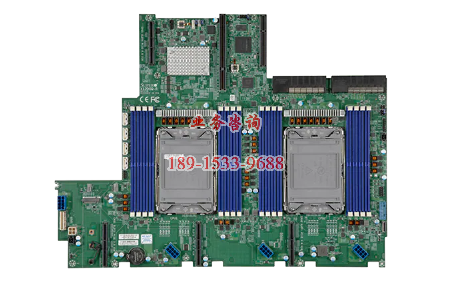

超微主板 X12DGQ-R 支持第三代至强 LGA4189

超微主板 X12DGQ-R 支持第三代至强 LGA4189

Key Features

3rd Gen Intel? Xeon? Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

Intel? C621A

Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB LRDIMM, DDR4-3200MHz
Up to 4TB Intel? Optane? Persistent Memory 200 Series, DDR4-3200MHz (OC), in 16 DIMM slots

1 PCIexpress 4.0 x32 riser supporting x16/x16,
4 PCIexpress 4.0 x16 slots,
1 PCIexpress 4.0 x4 M.2 slot
M.2 Form Factor: 2242/2260/2280/22110
M.2 Key: M-Key
1 PCIexpress 4.0 x8 SlimSAS ports supporting two NVME drives

Intel? C621A controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA D-Sub Connector port

Product SKUs
MBD-X12DGQ-R

Physical Stats
Form Factor	Proprietary
Dimension	16.9" x 12.9" (42.93cm x 32.77cm)

Processor
CPU	3rd Gen Intel? Xeon? Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core	Up to 40 cores

System Memory
Memory Capacity	16 DIMM slots Up to 4TB Intel? Optane? Persistent Memory 200 Series, DDR4-3200MHz Up to 4TB ECC LRDIMM, DDR4-3200MHz; Up to 4TB ECC RDIMM, DDR4-3200MHz
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
DIMM Sizes	16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel? C621A
SATA	Intel? C621A controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	Dual LAN with 10Gbase-T, via the AOM-PIO-I2XT installed on JSLOT6

Input / Output
