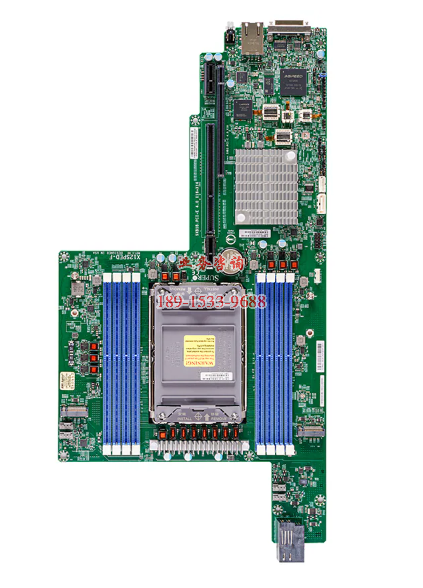

超微主板 X12SPED-F 支持第三代至强LGA4189

超微主板 X12SPED-F 支持第三代至强LGA4189


Key Features

  1. 3rd Gen Intel? Xeon? Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

  2. Intel? C621A


    • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz

    • Up to 2TB Intel? Optane? Persistent Memory 200 Series, in 8 DIMM slots


    • 1 PCIe 4.0 x16 (LP)

    • 2 PCIe 4.0 x16 (FHHL)

  5. 1 VGA Port;2 USB 2.0 Ports; 1 Serial Port via KVM Connector.

  6. M.2 Interface: 2 PCIe 4.0 x4,M.2 Form Factor: 2280/22110

  7. 1 RJ-45 GbE dedicated IPMI LAN with Intel? Ethernet Controller I210-AT

Product SKUs
MBD-X12SPED-F
Physical Stats
Form Factor

  • Proprietary

Dimension

  • 16.36" x 8.526" (415.57cm x 216.56cm)

Processor
CPU

  • 3rd Gen Intel? Xeon? Scalable processors

  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Core

  • Up to 40 cores

System Memory
Memory Capacity

  • 8 DIMM slots

  • Up to 2TB Intel? Optane? Persistent Memory 200 Series

  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • DCPMM: 64GB, 128GB, 256GB

  • LRDIMM: 64GB, 128GB, 256GB

  • RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

On-Board Devices
Chipset

  • Intel? C621A

IPMI

  • ASPEED AST2600 BMC

Network Controllers

  • Single LAN with Intel? Ethernet Controller I210-AT

Input / Output
USB

  • 2 USB 2.0 port(s) (2 type A Via KVM connector)

Video Output

  • 1 VGA port(s) Via KVM connector
