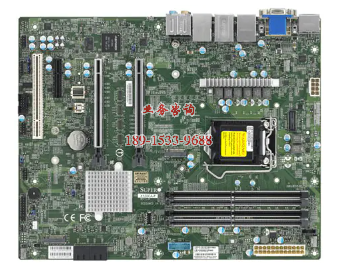

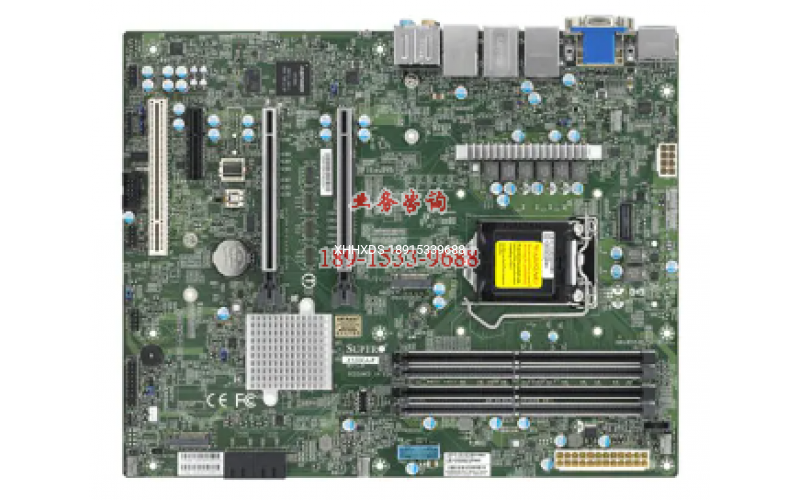

超微主板X12SCA-F 支持酷睿9-8代 LGA1151

超微主板X12SCA-F 支持酷睿9-8代 LGA1151

Key Features

10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3/Pentium? Processor, Intel? Xeon? W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

Intel? W480

Single LAN with Intel? PHY I219LM LAN controller
for AMT/vPro
Single LAN with Intel? Ethernet i225LM

128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots

1 PCIe 3.0 x4,
2 PCIe 3.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

Intel? W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port,
VGA port is dedicated for IPMI

Product SKUs
MBD-X12SCA-F

Physical Stats
Form Factor	ATX
Dimension	12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU	Intel? Xeon? W-1200 Processors, 10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3/Pentium?/Celeron? Processor Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core	Up to 10 cores

System Memory
Memory Capacity	4 DIMM slots 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz
Memory Type	Up to 128GB of ered memory with speeds of up to 2933MHz (2DPC)
DIMM Sizes	2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V

On-Board Devices
Chipset	Intel? W480
SATA	Intel? W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Audio	ALC 888S HD Audio
Graphics	VGA port is dedicated for IPMI
Network Controllers	Single LAN with Intel? Ethernet i225LM Single LAN with Intel? PHY I219LM LAN controller, for AMT/vPro
