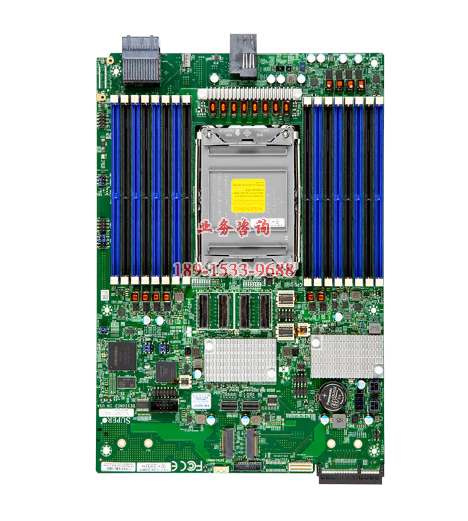

超微主板X12SPT-GC 支持第三代主板 LGA4189

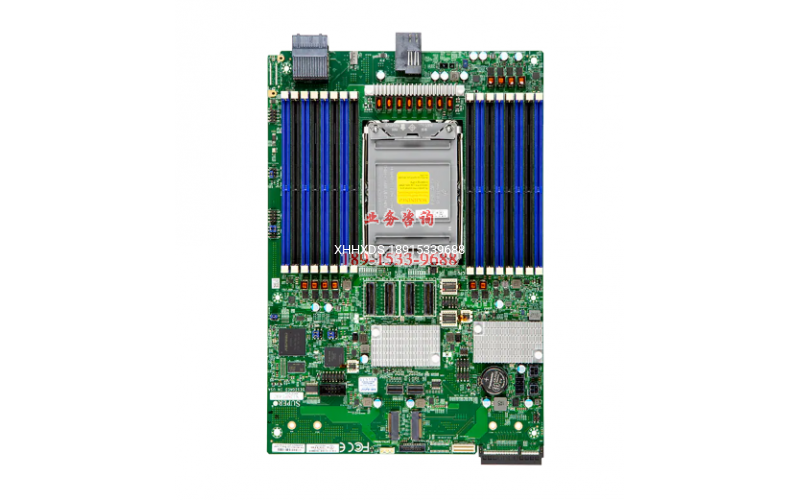

超微主板X12SPT-GC 支持第三代主板 LGA4189


Key Features

  1. 3rd Gen Intel? Xeon? Scalable processors
    Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

  2. Intel? C621A

  3. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
    Up to 2TB Intel? Optane? Persistent Memory 200 Series, in 16 DIMM slots

  4. 1x PCIe 4.0 x8 4C connector (for front I/O module), 4x PCIe 4.0 x8 MCIO connectors

  5. LSI 3808 controller for 6 SAS3 ports

  6. M.2 Interface: 2 PCIe 3.0 x4&SATA,M.2 Form Factor: 2280

Product SKUs
MBD-X12SPT-GC
Physical Stats
Form Factor

  • Proprietary

Dimension

  • 8.53" x 12.42" (21.67cm x 31.55cm)

Processor
CPU

  • 3rd Gen Intel? Xeon? Scalable processors

  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Core

  • Up to 40 cores

System Memory
Memory Capacity

  • 16 DIMM slots

  • Up to 2TB Intel? Optane? Persistent Memory 200 Series

  • Up to 2TB ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666 MT/s ECC , DDR4 LRDIMM, RDIMM

DIMM Sizes

  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

  • DCPMM: 64GB, 128GB, 256GB

  • LRDIMM: 64GB, 128GB

  • LRDIMM: 128GB, 256GB

  • RDIMM: 8GB, 16GB, 32GB, 64GB

  • RDIMM: 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

On-Board Devices
Chipset

  • Intel? C621A

SAS

  • Broadcom 3808 SAS3 (12 Gbps) controller for 6 SAS3 (6 Gbps) ports

Graphics

  • 1 ASPEED AST2600 BMC port(s)

Network Controllers

  • N/A

Input / Output
Serial Port

  • 1 COM Port(s) (1 header)

TPM
