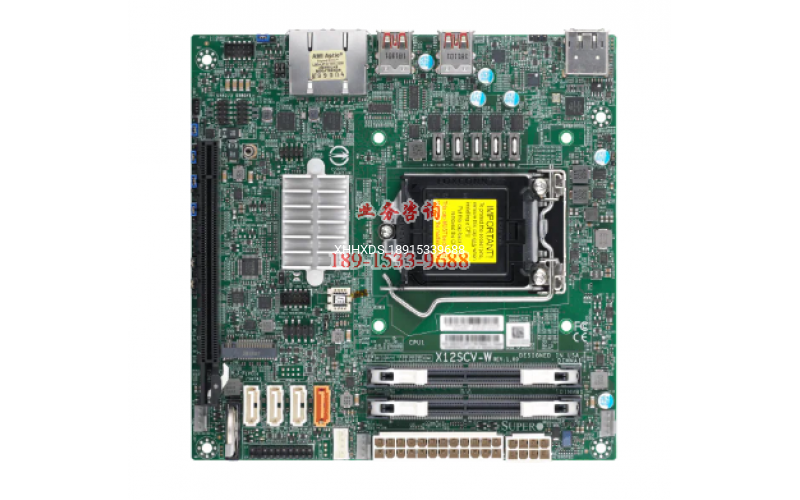

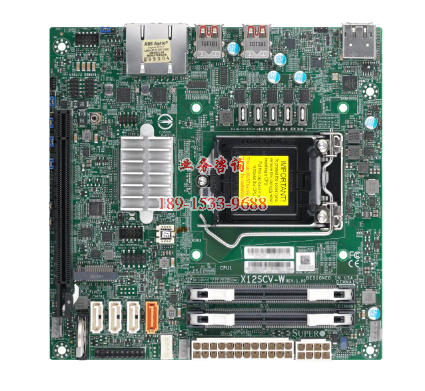

超微主板 X12SCV-W 支持8-9代酷睿 LGA1151

超微主板 X12SCV-W 支持8-9代酷睿 LGA1151


Key Features

  1. 11th/10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3 Processor, Intel? Xeon? W-1200 Processors
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP

  2. Intel? W480E

  3. Single LAN with Intel? Ethernet i225LM
    Single LAN with Intel? Ethernet i225V

  4. Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots

  5. 1 PCIe 3.0 x16 slots (16/NA or 8/8)
    1 M.2 M-Key PCIe 3.0 x4, 2280

  6. Intel? W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  7. 1 HDMI port, 1 DP (DisplayPort) port

Product SKUs
MBD-X12SCV-W
Physical Stats
Form Factor

  • Mini-ITX

Dimension

  • 6.7" x 6.7" (17.02cm x 17.02cm)

Processor
CPU

  • Intel? Xeon? W-1200 Processors, 11th/10th Generation Intel? Core? i9/Core? i7/Core? i5/Core? i3 Processor

  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP

Core

  • Up to 10 cores

Note

  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
    **The X12SCV-W does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.

System Memory
Memory Capacity

  • 2 DIMM slots

  • Up to 64GB ECC/non-ECC SODIMM, DDR4-2933MHz

Memory Type

  • 2933/2666/2400/2133 MT/s ECC/non-ECC DDR4 SODIMM

DIMM Sizes

  • 4GB, 8GB, 16GB, 32GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • Intel? W480E

SATA 0
0
