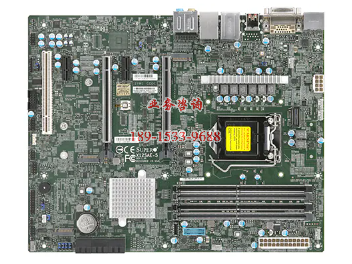

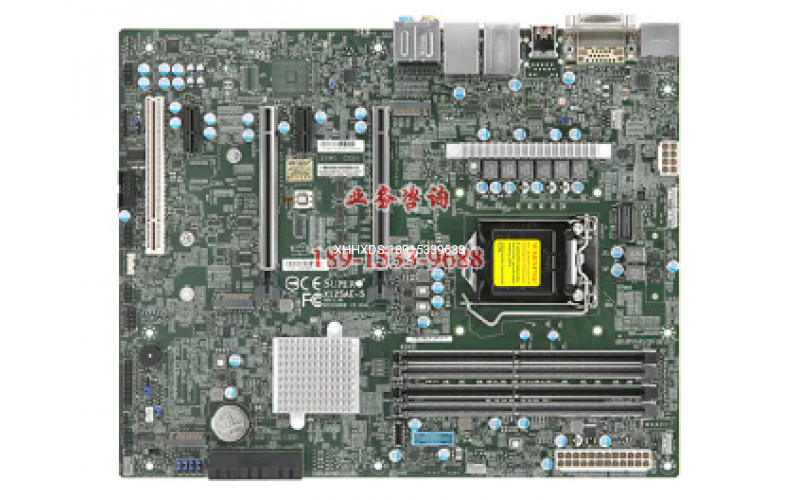

超微主板 X12SAE-5 支持酷睿8-9代 LGA1151

Key Features

1.


• 10th/11th Gen Intel? Core? i9/i7/i5/i3 Processors, Intel? Xeon? W-1200/W-1300 Processors

• Single Socket LGA-1200 (Socket H5), Up to 125W TDP

2. Intel? W580

3. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots

4.


• 2 PCIe 4.0 x16 (16/NA or 8/8), 2 PCIe 3.0 x1

• 1 PCI 5V 32bit

•


• M.2 Interface: 1 PCIe 4.0 x4 and 2 PCIe 3.0 x4 (RAID 0, 1)

• M.2 Form Factor: 2280/22110

• M.2 Key: M-Key

• RAID 5 only applied for INTEL Storage Device, M.2-M3 is limited with 10th Gen CPU and W-1200 CPU

5.


• Single LAN with Intel? Ethernet i225V

• Single LAN with Intel? PHY I219LM LAN controller

• for AMT/vPro

6. Intel? W580 controller for 6 SATA3 (6 Gbps) Ports (RAID 0,1,5,10)

7. 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port
