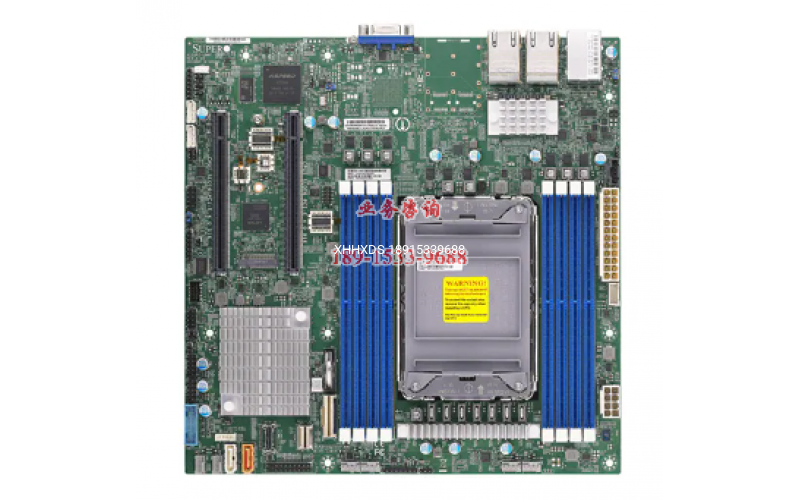

超微主板X12SPZ-LN4F 支持至强第三代 LGA4189

超微主板X12SPZ-LN4F 支持至强第三代 LGA4189


Key Features

  1. 3rd Gen Intel? Xeon? Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

  2. Intel? C621A

  3. Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel? Optane? Persistent Memory 200 Series, in 8 DIMM slots

  4. 2 PCIe 4.0 x16

  5. 1 PCIe 4.0 NVMe x8 SlimSAS Internal Port
    1 PCIe 4.0 NVMe x4 SlimSAS Internal Port

  6. 1 OCuLink Connector (4 SATA/PCIe 3.0 x4)
    1 M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)

  7. Quad 1G RJ45 with Intel? I350-AM4

  8. 4 USB 3.2 Gen 1 (2 Rear, 2 via Header),
    4 USB 2.0 (Headers)

  9. Supports 12V DC power input


Product SKUs
MBD-X12SPZ-LN4F
Physical Stats
Form Factor

  • Micro-ATX

Dimension

  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU

  • 3rd Gen Intel? Xeon? Scalable processors

  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Core

  • Up to 40 cores

System Memory
Memory Capacity

  • 8 DIMM slots

  • Up to 2TB Intel? Optane? Persistent Memory 200 Series

  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • Intel? C621A

SATA

  • Intel? C621A controller for 6 SATA3 (6 Gbps) ports

  • 4 SATA ports via OCuLink; RAID 0,1,5,10

IPMI 0
0
