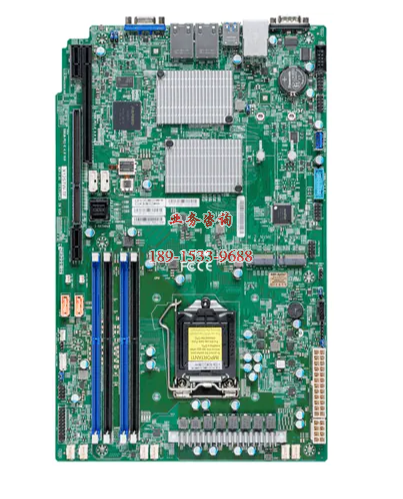

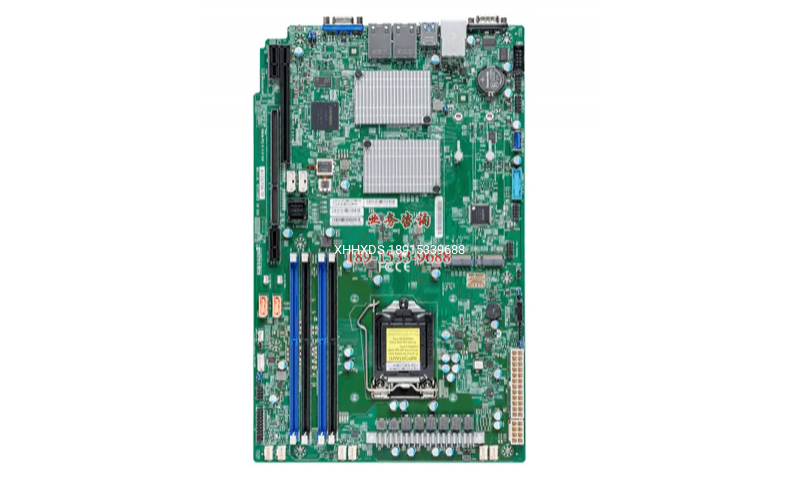

超微主板 X12STW-TF 支持酷睿9-8代 LGA1151

Key Features

1. Intel? Xeon? E-2300 Processor, 10th Generation Intel? Pentium? Processor, Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP

2. Intel? C256

3. Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz

4.


• 1 PCIe 4.0 x16 Left Riser Slot

• 1 PCIe 3.0 x4 (in x8, Right Riser slot)

5.


• M.2 Interface: 1 PCIe 4.0 x4 and 1 PCIe 3.0 x4

• M.2 Form Factor: 2280/22110

• M.2 Key: M-Key Double Height Connector

6. Dual LAN with Intel? X550 10GBase-T Ethernet Controller

7. Intel? C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

8. 1 VGA port

9.


• 4 USB 3.2 Gen1 ports (2 rear + 2 via headers)

• 1 USB 3.2 Gen2 port (1 Type A)

• 6 USB 2.0 ports (2 rear + 4 via headers)
