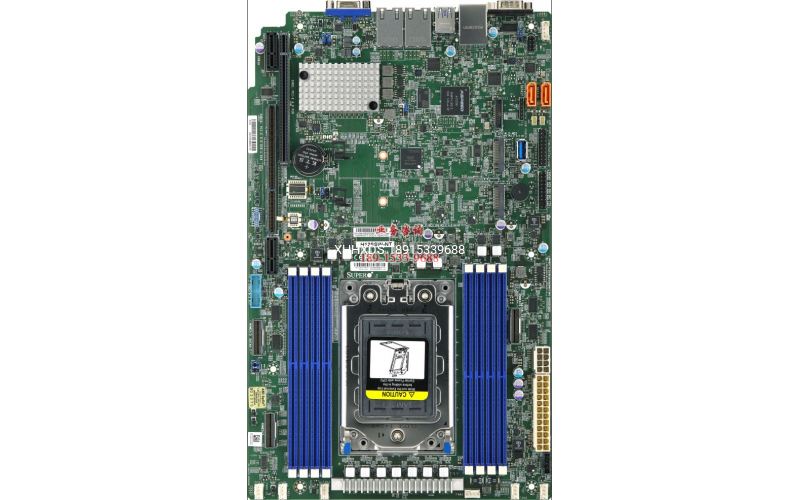

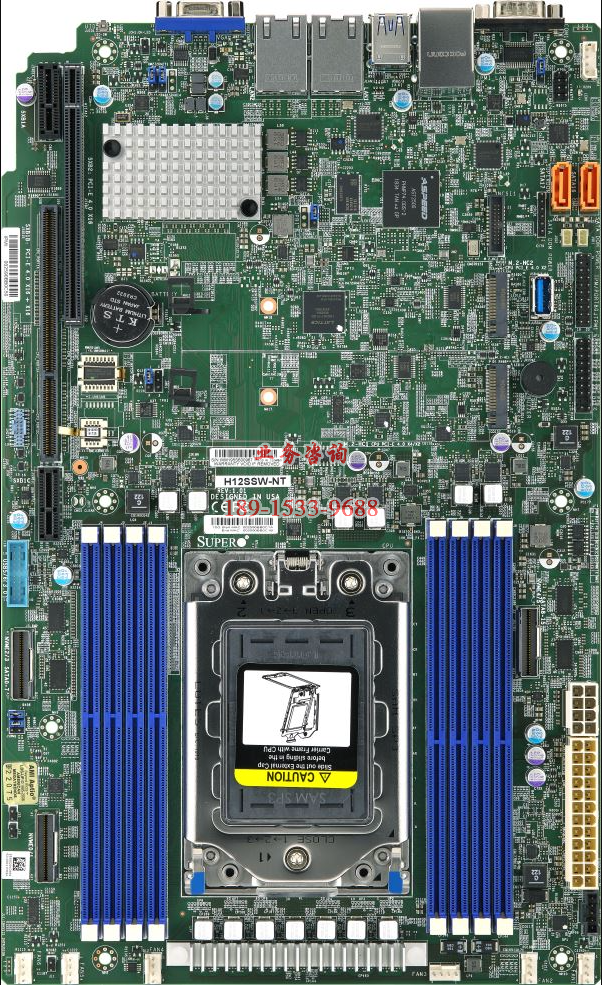

超微主板 H12SSW-NT 支持AMD PS3 CPU

超微主板 H12SSW-NT 支持AMD PS3 CPU


Key Features1.Single AMD EPYC 7003/7002 Series Processor
(The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache? Technology requires BIOS version 2.3 or newer)2.2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs3.Expansion slots:
1 PCI-E 4.0 x32 Left Riser Slot
1 PCI-E 4.0 x16 Right Riser Slot
M.2 Interface: 2 SATA/PCI-E 3.0 x2
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
4.2 NVMe via SlimSAS,
4 NVMe or 16 SATA3 via SlimSAS,
2 M.2,
2 SATA35.2x 10GBase-T LAN Ports via Broadcom BCM574166.ASPEED AST2500 BMC graphics7.Up to 7 USB 3.0 ports8.6x 4-pin PWM Fans & Speed control
Product SKUs

MBD-H12SSW-NT

  • H12SSW-NT (for server SKUs only)



Physical Stats

Form Factor

  • Proprietary WIO

Dimensions

  • 8.15" x 13.05"



Processor/Chipset

CPU

  • Single AMD EPYC 7003/7002 Series Processor
    (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache? Technology requires BIOS version 2.3 or newer)

  • Socket SP3

Cores

  • Up to 64 Cores

Chipset

  • System on Chip



System Memory

Memory Capacity

  • 8 DIMM slots

  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs

  • 8-channel memory bus

Memory Type

  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes

  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)



On-Board Devices

SATA

  • SATA3 (6 Gbps)

0
