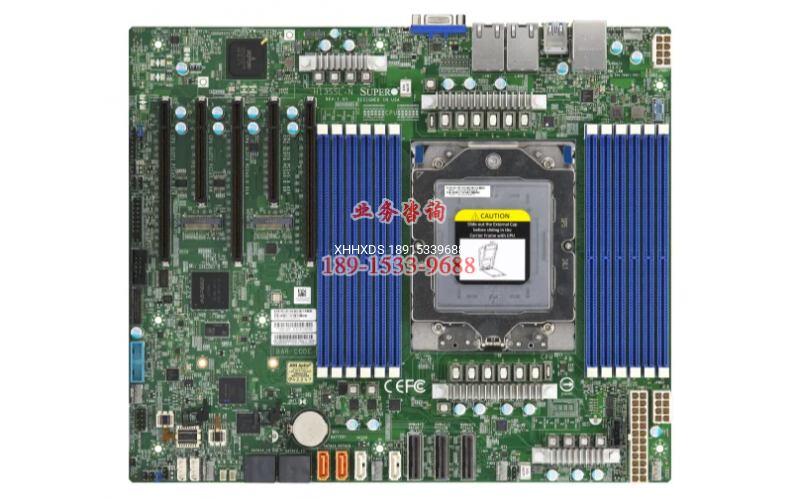

超微主板 H13SSL-N 支持AMD SP3 CPU

超微主板 H13SSL-N 支持AMD SP3 CPU


Key Features

  1. AMD EPYC 9004 series Processors

  2. System on Chip

  3. Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots

  4. 3 PCIe 5.0 x16 2 PCIe 5.0 x8

  5. Up to 6 USB 3.0 ports(4 rear + 2 via header)

  6. 8 SATA3

  7. 6 PWM 4-pin Fans with tachometer status monitoring

  8. M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110

Product SKUs
MBD-H13SSL-N
Physical Stats
Form Factor

  • ATX

Dimension

  • 12" x 10.1" (30.48cm x 25.65cm)

Processor
CPU

  • AMD EPYC 9004 series Processors

  • Single Socket SP5 supported, CPU TDP supports Up to 400W TDP

Core

  • Up to 96/192

System Memory
Memory Capacity

  • 12 DIMM slots

  • Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz

Memory Type

  • 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)

DIMM Sizes

  • 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB

Memory Voltage

  • 1.1V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • System on Chip

Network Controllers

  • Dual LAN with Broadcom BCM5720 1GBase-T

Input / Output
SATA

  • 8 SATA3 (6Gbps) port(s)

LAN

  • 1 RJ45 Dedicated IPMI LAN port

USB

  • 6 USB 3.0 port(s) (4 USB; 2 via header)

Video Output

  • 1 VGA port(s)
