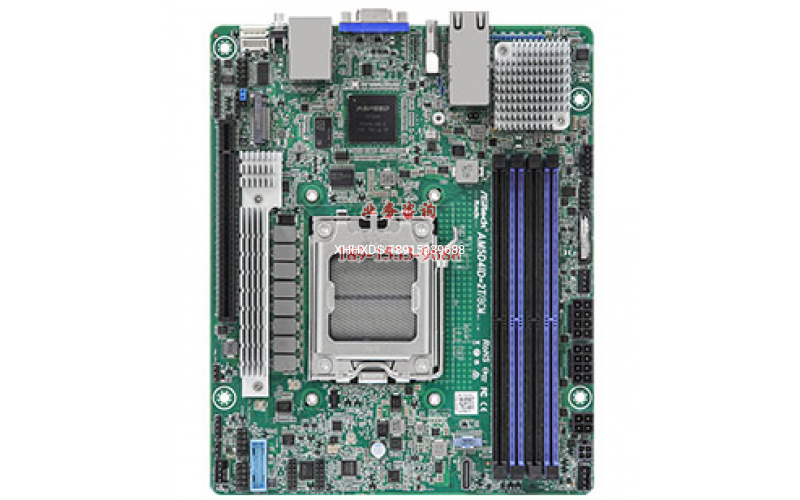

Deep mini-ITX (6.7"x 8.2")
Support AMD Ryzen 7000 series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 PCIe5.0 x16
1 OCuLink (PCIe4.0 x2)
Supports 1 M.2 (PCIe5.0 x4)
2 RJ45 (10GbE) by Broadcom BCM57416
1 HDMI
Remote management (IPMI)
| 物理信息 | |
| 型式 | Deep mini-ITX |
| 尺寸 | 6.7" x 8.2" |
| 处理器系统 | |
| CPU | Supports AMD Ryzen 7000 series Processors |
| 插槽 | Single Socket AM5 (LGA 1718) |
| 电源设计 | 120W (Air)/170W (Liquid) |
| 芯片组 | KNOLL3 X300 |
| 系统内存 | |
| 容量 | 4 DIMM slots (2DPC) |
| 类型 | DDR5 288-pin ECC/non-ECC UDIMM |
| 每个DIMM支持的 DIMM 尺寸 | 32GB |
| Max. DIMM Frequency | 5200 MHz (1DPC); 3600 MHz (2DPC) |
| 电压 | 1.1V |
| 扩展插槽 | |
| PCIe x 16 | PCIe5.0 x16 [CPU] |
| Others | 1 OCuLink (PCIe4.0 x2) [CPU] |
| M.2 | 1 M-key (PCIe5.0 x4), supports 2280 form factor [CPU] |
| 以太网 | |
| Additional GbE Controller | Broadcom BCM57416: 2 RJ45 (10GbE) |
| 管理功能 | |
| BMC 控制器 | ASPEED AST2600 |
| IPMI 独立 GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| 显示 | |
| 控制器 | ASPEED AST2600: 1 DB15 (VGA) AMD Processors with Graphics: 1 HDMI |
| 后侧面板 I/O 接口 | |
| VGA 接口 | 1 DB15 (VGA), 1 HDMI |
| USB 3.0 接口 | 2 Type-A (USB3.2 Gen1) |
| 网络接口 | 2 RJ45 (10GbE) 1 dedicated IPMI |
| UID Button/UID LED | 1 UID button w/ LED |
| 内置接口 | |
| 电源接口 | 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in |
| 串口连接插座 | 1 |
| 辅助面板接头 | 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED |
| TPM 接口 | 1 (13-pin, SPI) |
| 热量感应接口 | 1 |
| IPMB 接口 | 1 |
| 风扇接口 | 3 (4-pin) |
| 其他电源连接头 | 1 (4-pin) for HDD power when using 12V DC-in power source |
| USB 3.2 (Gen1) 连接头 | 1 header (19-pin, 2 USB3.2 Gen1) |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| 扬声器 | 1 |
| BMC_SMB Header | 1 |
| Clear CMOS | 1 |
| Others | 1 UID header (4-pin), 1 NCSI header (4-pin), 1 IPMI LAN LED header (4-pin), 1 80 debug port header (13-pin) |
| 板载 LED | |
| Standby PWR LED 5vsb | 1 (5VSB) |
| Fan Fail LED | 3 |
| BMC heartbeat LED | 1 |
| 系统 BIOS | |
| BIOS 类型 | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS 功能 | Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3 |
| 硬件监控 | |
| 温度 | CPU, DDR, MB, Card Side |
| 风扇 | Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| 电压 | 3VSB, 5VSB, VCPU, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V |
| 使用环境 | |
| 温度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
