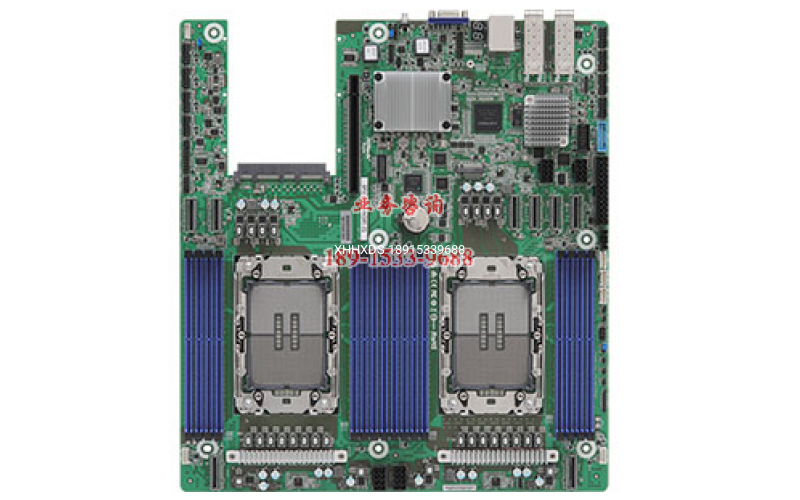

EEB (12.8" x 14")Supports 4th Gen Intel?Xeon?Scalable Processors8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS1 PCIe5.0 / CXL1.1 x168 MCIO (PCIe5.0 x8)1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)Supports 1 M.2 (PCIe5.0 x4)Up to 4 SATA 6Gb/s1 OCP NIC 3.0 (PCIe5.0 x16)2 SFP28 (2
EEB (12.8" x 14")
Supports 4th Gen Intel? Xeon? Scalable Processors
8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
1 PCIe5.0 / CXL1.1 x16
8 MCIO (PCIe5.0 x8)
1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)
Supports 1 M.2 (PCIe5.0 x4)
Up to 4 SATA 6Gb/s
1 OCP NIC 3.0 (PCIe5.0 x16)
2 SFP28 (25GbE) by Broadcom BCM57414
Remote management (IPMI)
| 物理信息 | |
| 型式 | EEB |
| 尺寸 | 12.8" x 14" (325.12 x 355.6 mm) |
| 处理器系统 | |
| CPU | Supports 4th Gen Intel? Xeon? Scalable Processors |
| 插槽 | 1+1 Socket E (LGA 4677) |
| 电源设计 | 350W |
| 芯片组 | Intel? C741 |
| 系统内存 | |
| 容量 | 8+8 DIMM slots (1DPC) |
| 类型 | 288-pin DDR5 RDIMM/ RDIMM-3DS |
| 每个DIMM支持的 DIMM 尺寸 | RDIMM: 64GB RDIMM-3DS: 2H- 128 GB / 4H- 256 GB |
| Max. DIMM Frequency | 4800 MT/s |
| 电压 | 1.1V |
| 扩展插槽 | |
| PCIe x 16 | SLOT6: PCIe5.0 / CXL1.1 x16 [CPU1] |
| 存储 | |
| SATA 控制器 | Intel? C741 (4 SATA 6Gb/s, support RAID 0/1/5/10): 1 OCuLink |
| Others | 5 MCIO (PCIe5.0 x8) [CPU0] 3 MCIO (PCIe5.0 x8) [CPU1] |
| OCuLink for U.2 | 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s) [PCH] |
| M.2 | 1 M-key (PCIe5.0 x4), supports 2280 form factor [CPU0] |
| 以太网 | |
| Additional GbE Controller | 2 SFP28 (25GbE) by Broadcom BCM57414 |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU1] |
| 管理功能 | |
| BMC 控制器 | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI 独立 GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| 显示 | |
| 控制器 | ASPEED AST2600: 1 DB15 (VGA), 1 header |
| 后侧面板 I/O 接口 | |
| VGA 接口 | 1 DB15 (VGA) |
| USB 2.0 接口 | 2 Type-A (USB2.0) |
| 网络接口 | 1 dedicated IPMI |
| Other network connector | 2 SFP28 (25GbE) |
| UID Button/UID LED | 1 UID button w/ LED |
| 内置接口 | |
| 电源接口 | 1 (24-pin, ATX main power), 4 (8-pin, ATX 12V) |
| 串口连接插座 | 1 (9-pin) |
| 辅助面板接头 | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM 接口 | 1 (13-pin, SPI) |
| IPMB 接口 | 1 |
| VGA 接口 | 1 (15-pin) |
| 风扇接口 | 8 (6-pin) |
| USB 3.2 (Gen1) 连接头 | 1 header (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| BMC_SMB Header | 2 |
| SGPIO Header | 1 |
| CPU HSBP | 2 |
| VROC KEY | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 NC-SI |
| 板载 LED | |
| Standby PWR LED 5vsb | 1 |
| Port 80 LED | 1 |
| Fan Fail LED | 8 |
| BMC heartbeat LED | 1 |
| 系统 BIOS | |
| BIOS 类型 | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS 功能 | Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash |
| 硬件监控 | |
| 温度 | CPU, PCH, MB, Card Side, RAM Temperature Sensing |
| 风扇 | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| 电压 | 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, PVCCIN_CPU, PVCCINFAON_CPU, PVCCFA_EHV_FIVRA_CPU, PVCCD_HV_CPU, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB |
| 使用环境 | |
| 温度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
