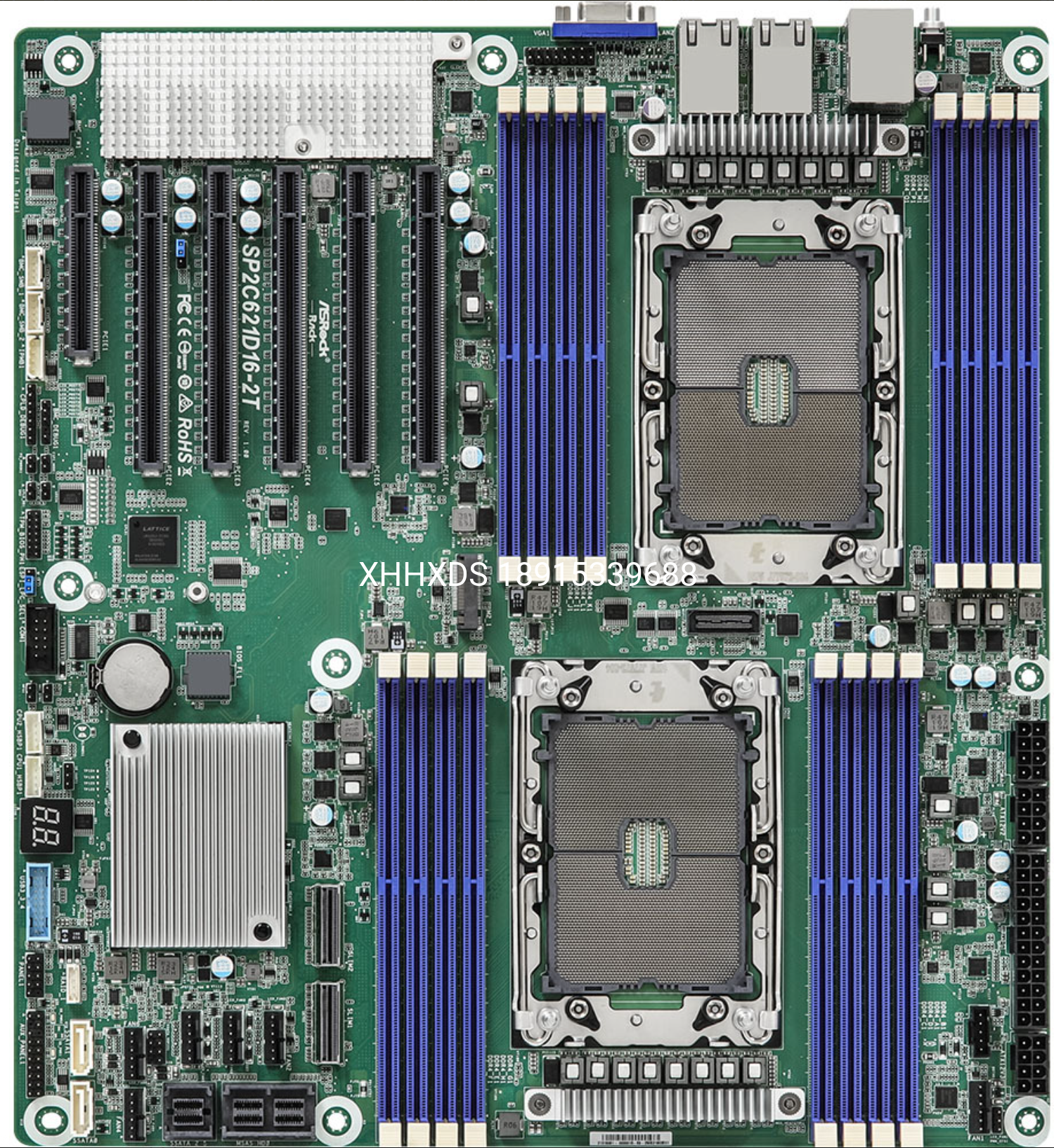

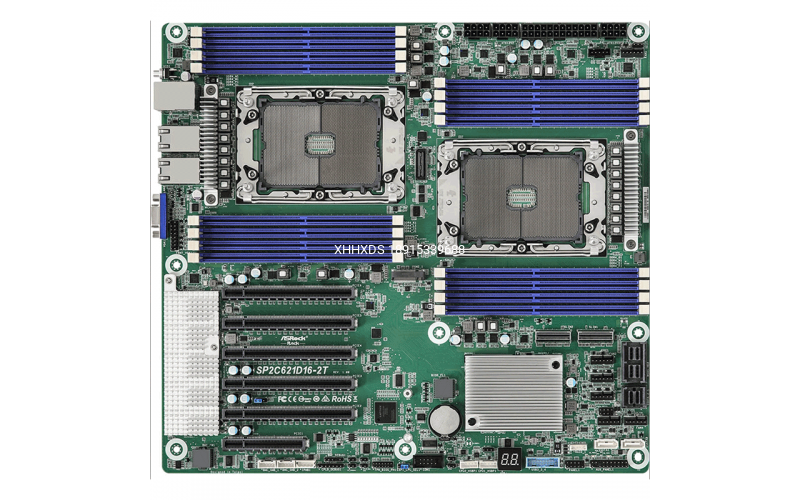

EEB (12" x 13")Dual Socket P+ (LGA 4189), supports 3rdGen Intel?Xeon?Scalable processors8+8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel?Optane? Persistent Memory5 PCIe4.0 x16, 1 PCIe4.0 x82 SlimSAS (PCIe4.0 x8)Supports 1 M.2 (PCIe4.0 x4)14 SATA 6Gb
EEB (12" x 13")
Dual Socket P+ (LGA 4189), supports 3rd Gen Intel? Xeon? Scalable processors
8+8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel? Optane? Persistent Memory
5 PCIe4.0 x16, 1 PCIe4.0 x8
2 SlimSAS (PCIe4.0 x8)
Supports 1 M.2 (PCIe4.0 x4)
14 SATA 6Gb/s
2 RJ45 (10GbE) by Intel? X550-AT2
Remote management (IPMI)
| 物理信息 | |
| 型式 | EEB |
| 尺寸 | 12" x 13" |
| 处理器系统 | |
| CPU | Supports 3rd Gen Intel? Xeon? Scalable processors |
| 插槽 | Dual Socket P+ (LGA 4189) |
| 芯片组 | Intel? C621A |
| 系统内存 | |
| 容量 | 8+8 DIMM slots (1DPC) |
| 类型 | Supports DDR4 288-pin RDIMM/RDIMM-3DS/LRDIMM/LRDIMM-3DS, Intel? Optane? Persistent Memory 200 Series |
| 每个DIMM支持的 DIMM 尺寸 | RDIMM: up to 64GB RDIMM-3DS: up to 256GB LRDIMM: up to 128GB LRDIMM-3DS: up to 256GB |
| Max. DIMM Frequency | max. 3200MHz |
| 电压 | 1.2V |
| 扩展插槽 | |
| PCIe x 16 | SLOT6: PCIe4.0 x16 [CPU2] SLOT5: PCIe4.0 x16 [CPU2] SLOT4: PCIe4.0 x16 [CPU2] SLOT3: PCIe4.0 x16 [CPU1] SLOT2: PCIe4.0 x16 [CPU1] |
| PCIe x 8 | SLOT1: PCIe4.0 x8 [CPU1] |
| 存储 | |
| SATA 控制器 | Intel? C621A (14 SATA 6Gb/s, support RAID 0/1/5/10): 1 Mini-SAS HD 8i, 1 Mini-SAS HD 4i, 2 SATA 7-pin |
| Others | 2 SlimSAS (PCIe4.0x8) [CPU1] |
| M.2 | 1 M-key (PCIe4.0 x4); Support 22110/2280 form factor [CPU1] |
| 以太网 | |
| Additional GbE Controller | 2 RJ45 (10GbE) by Intel? X550-AT2 |
| 管理功能 | |
| BMC 控制器 | ASPEED AST2500 |
| IPMI 独立 GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| 显示 | |
| 控制器 | ASPEED AST2500 |
| 显存 | DDR4 16MB |
| 后侧面板 I/O 接口 | |
| VGA 接口 | 1 DB15 |
| USB 3.0 接口 | 2 Type-A (USB3.2 Gen1) |
| 网络接口 | 2 RJ45 (10GbE) |
| UID Button/UID LED | 1 |
| 内置接口 | |
| 电源接口 | 1 (24-pin, ATX main power), 3 ( 8-pin, ATX 12V) |
| 串口连接插座 | 1 |
| 辅助面板接头 | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM 接口 | 1 (13-pin, SPI) |
| VGA 接口 | 1 |
| 风扇接口 | 4 (8-pin), 2 (6-pin) |
| USB 3.2 (Gen1) 连接头 | 1 (19-pin, 2 USB3.2 Gen1) |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| BMC_SMB Header | 1 |
| CPU HSBP | 1 |
| VROC KEY | 1 |
| Clear CMOS | 1 (contact pads) |
| 系统 BIOS | |
| BIOS 类型 | AMI 256 Mb SPI Flash ROM |
| BIOS 功能 | ASRock Rack Instant Flash, ACPI 5.0, SMBIOS 2.3, Plug and Play (PnP) |
| 硬件监控 | |
| 温度 | CPU, PCH, MB, Card side, X550 Temperature Sensing |
| 风扇 | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| 电压 | CPU1_PVCCIN, CPU2_PVCCIN, PVDDQ_ABCD,PVDDQ_EFGH,PVDDQ_IJKL,PVDDQ_MNOP, 1.05V_PCH,1.8V_PCH, +BAT,PVNN_PCH, 3.3V,5V,12V,3.3VSB, 5VSB |
| 支持操作系统 | |
| 操作系统 | Microsoft? Windows? : Server 2016 (64 bit) Server 2019 (64 bit) Server 2022 (64 bit) Linux : Red Hat Enterprise Linux Server 7.9 (64 bit) / 8.5 (64 bit) CentOs 7.9 (64 bit) / 8.5 (64 bit) SUSE Enterprise Linux Server 15 SP2 (64 bit) Ubuntu 20.04.2 (64 bit) / 21.04 (64 bit) / 21.10 (64 bit) Hypervisor : VMWare? ESXi 6.7.0 U3 / vSphere 6.7.0 U3 VMWare? ESXi 7.0 U3c / vSphere 7.0 U3c |
| 使用环境 | |
| 温度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
