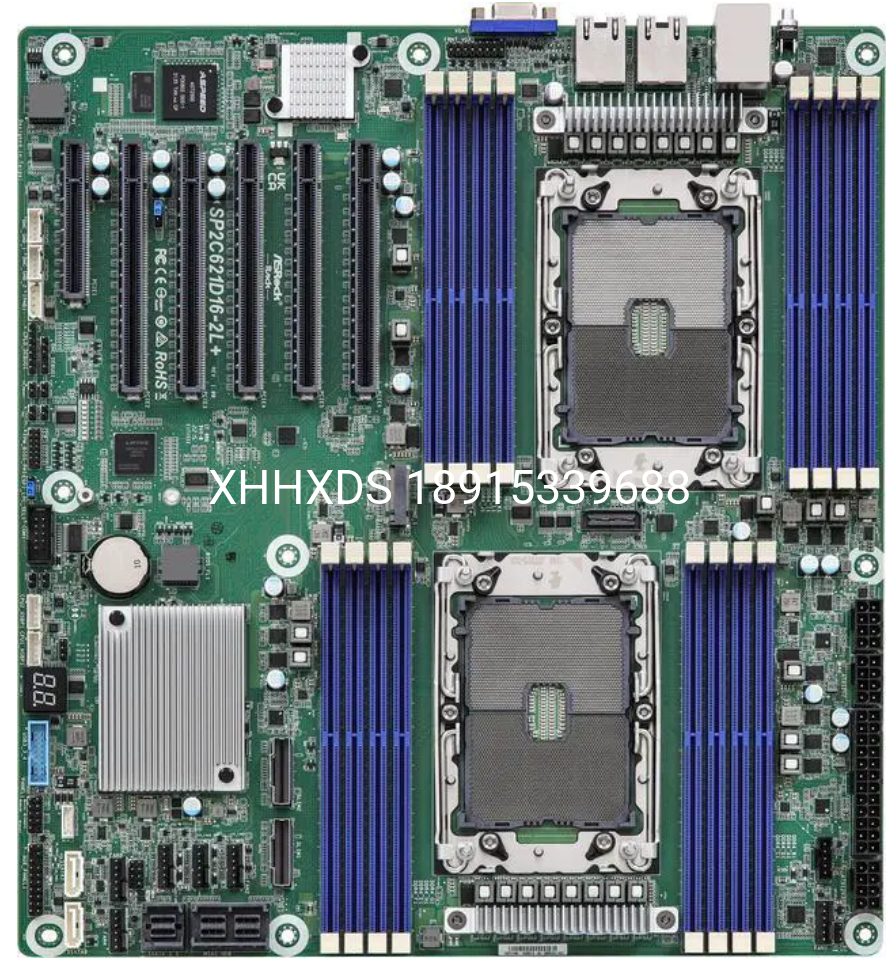

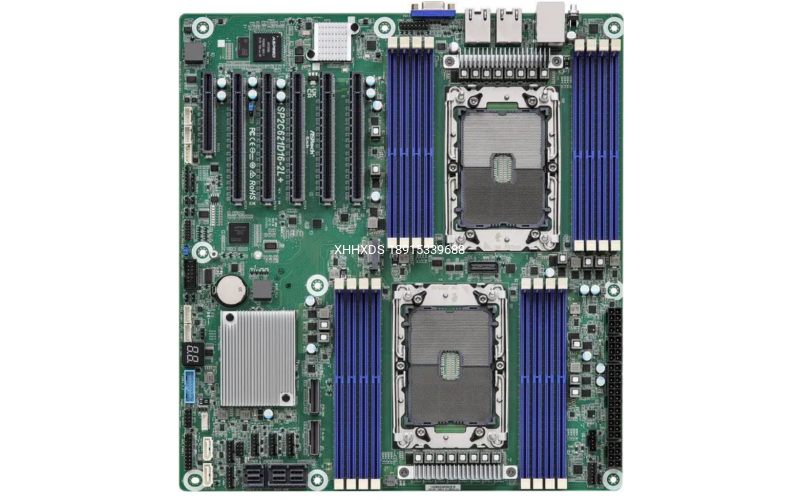

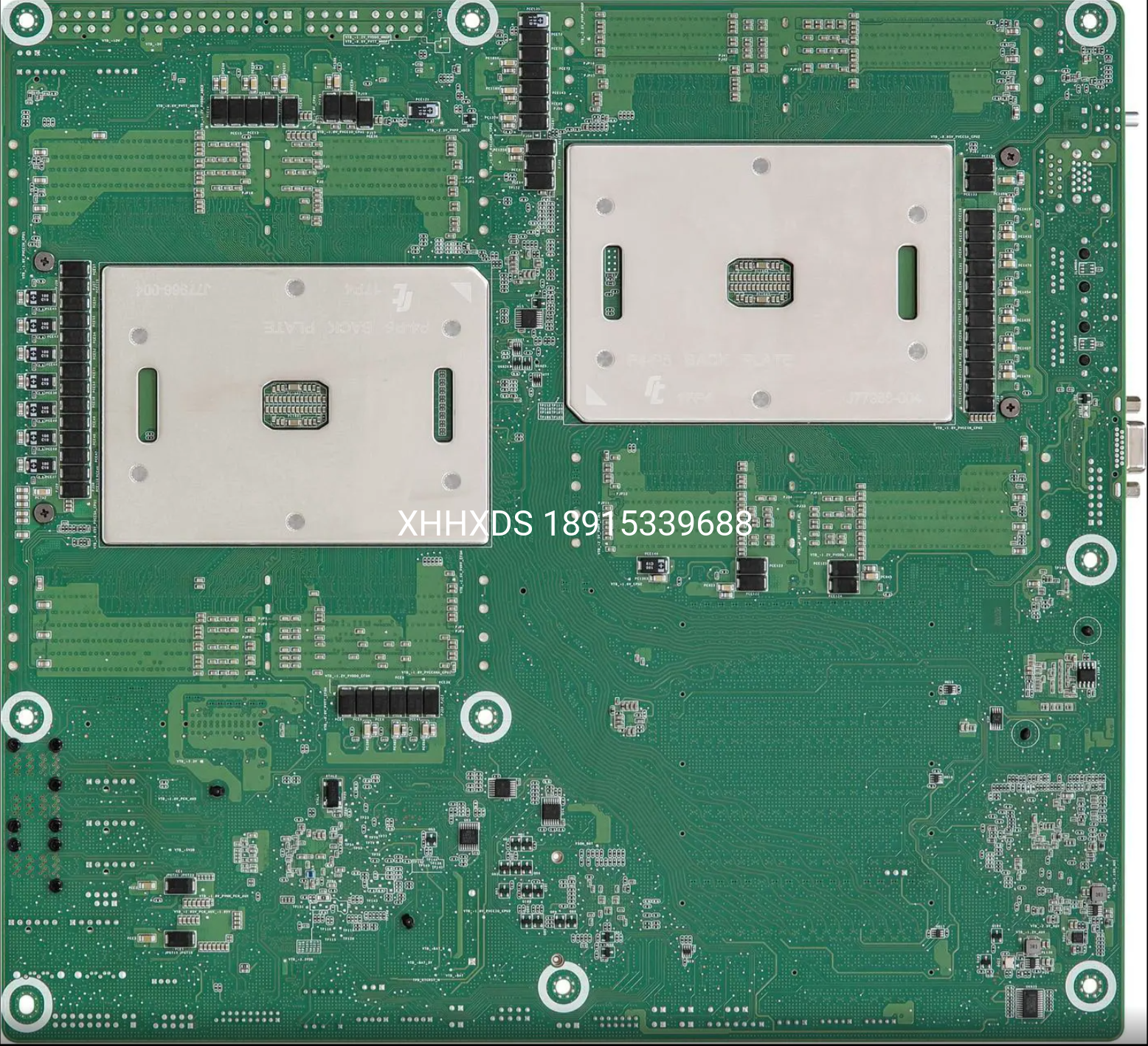

EEB (12" x 13")Dual Socket P+ (LGA 4189), supports 3rdGen Intel?Xeon?Scalable processors8+8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel?Optane? Persistent Memory5 PCIe4.0 x16, 1 PCIe4.0 x82 SlimSAS (PCIe4.0 x8)Supports 1 M.2 (PCIe4.0 x4)14 SATA 6Gb
EEB (12" x 13")
Dual Socket P+ (LGA 4189), supports 3rd Gen Intel? Xeon? Scalable processors
8+8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel? Optane? Persistent Memory
5 PCIe4.0 x16, 1 PCIe4.0 x8
2 SlimSAS (PCIe4.0 x8)
Supports 1 M.2 (PCIe4.0 x4)
14 SATA 6Gb/s
2 RJ45 (1GbE) by Intel? I350-AM2
Remote management (IPMI)
| 物理信息 | |
| 型式 | EEB |
| 尺寸 | 12" x 13" |
| 处理器系统 | |
| CPU | Supports 3rd Gen Intel? Xeon? Scalable processors |
| 插槽 | Dual Socket P+ (LGA 4189) |
| 芯片组 | Intel? C621A |
| 系统内存 | |
| 容量 | 8+8 DIMM slots (1DPC) |
| 类型 | DDR4 288-pin RDIMM/RDIMM-3DS/LRDIMM/LRDIMM-3DS, Intel? Optane? Persistent Memory 200 Series |
| 每个DIMM支持的 DIMM 尺寸 | RDIMM: up to 64GB RDIMM-3DS: up to 256GB LRDIMM: up to 128GB LRDIMM-3DS: up to 256GB |
| Max. DIMM Frequency | max. 3200MT/s |
| 电压 | 1.2V |
| 扩展插槽 | |
| PCIe x 16 | SLOT6: PCIe4.0 x16 [CPU1] SLOT5: PCIe4.0 x16 [CPU1] SLOT4: PCIe4.0 x16 [CPU1] SLOT3: PCIe4.0 x16 [CPU0] SLOT2: PCIe4.0 x16 [CPU0] |
| PCIe x 8 | SLOT1: PCIe4.0 x8 [CPU0] |
| 存储 | |
| SATA 控制器 | Intel? C621A (14 SATA 6Gb/s, support RAID 0/1/5/10): 1 Mini-SAS HD 8i, 1 Mini-SAS HD 4i, 2 SATA 7-pin |
| Others | 2 SlimSAS (PCIe4.0 x8) [CPU0] |
| M.2 | 1 M-key (PCIe4.0 x4); Support 22110/2280 form factor [CPU0] |
| 以太网 | |
| Additional GbE Controller | 2 RJ45 (1GbE) by Intel? I350-AM2 |
| 管理功能 | |
| BMC 控制器 | ASPEED AST2500: IPMI2.0 with iKVM and vMedia support |
| IPMI 独立 GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211E |
| 显示 | |
| 控制器 | ASPEED AST2500: 1 DB15 (VGA) |

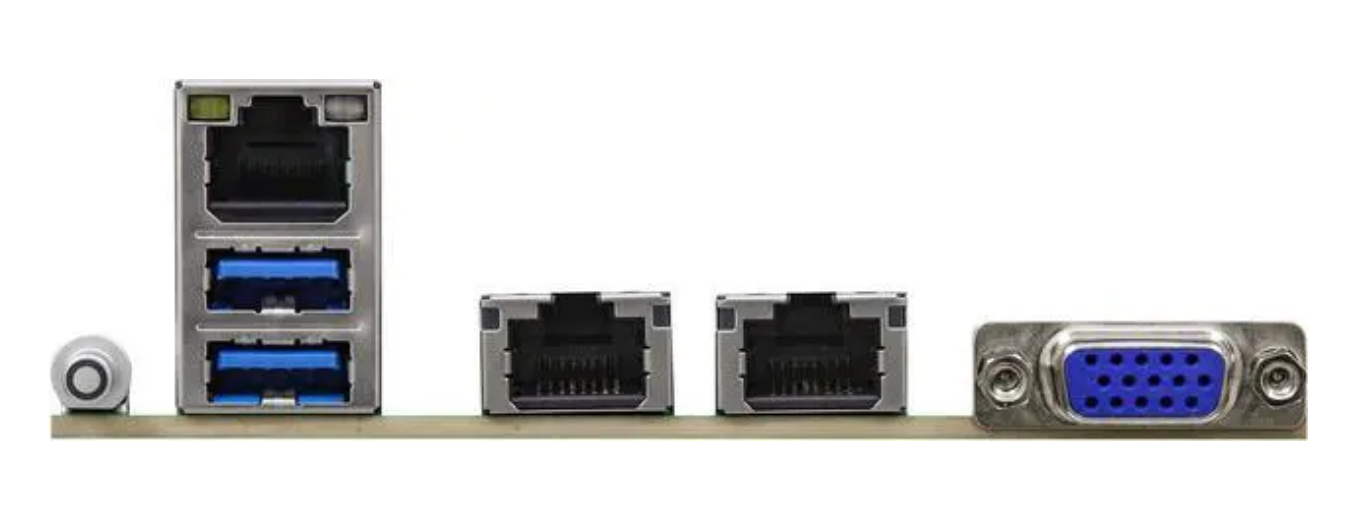

| 后侧面板 I/O 接口 | |
| VGA 接口 | 1 DB15 (VGA) |
| USB 3.0 接口 | 2 Type-A (USB3.2 Gen1) |
| 网络接口 | 2 RJ45(1GbE), 1 dedicated IPMI |
| UID Button/UID LED | 1 button w/ LED |
| 内置接口 | |
| 电源接口 | 1 (24-pin, ATX main power), 3 ( 8-pin, ATX 12V) |
| 串口连接插座 | 1 |
| 辅助面板接头 | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM 接口 | 1 (13-pin, SPI) |
| IPMB 接口 | 1 |
| VGA 接口 | 1 |
| 风扇接口 | 6 (6-pin) |
| USB 3.2 (Gen1) 连接头 | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| BMC_SMB Header | 2 |
| SGPIO Header | 1 |
| CPU HSBP | 2 |
| VROC KEY | 1 |
| Clear CMOS | 1 (contact pads) |
| ME/SPS Recovery | 1 |
| 板载 LED | |
| Standby PWR LED 5vsb | 1 |
| Port 80 LED | 1 |
| Fan Fail LED | 6 |
| BMC heartbeat LED | 1 |
| 系统 BIOS | |
| BIOS 类型 | AMI 256Mb SPI Flash ROM |
| BIOS 功能 | Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.3 and above, ASRock Rack Instant Flash |
| 硬件监控 | |
| 温度 | CPU, PCH, MB, Card Side, M.2, DDR4 Temperature Sensing |
| 风扇 | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| 电压 | +3.3VSB, +5VSB, +1.83V_VCCIN_P1, +1.83V_VCCIN_P2, +1.2V_VDDQ_ABCD, +1.2V_VDDQ_EFGH, +1.2V_VDDQ_IJKL, +1.2V_VDDQ_MNOP, +PVNN_PCH_AUX, +1.05V_PCH_AUX, +1.8V_PCH_AUX, +BAT, +3.3V, +5V, +12V |
| 使用环境 | |
| 温度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
