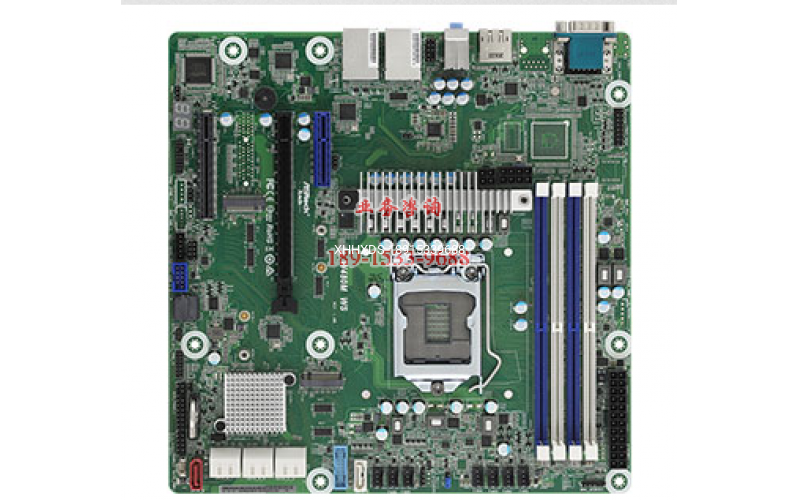

Supports Intel? Xeon? W-1200 / W-1300 Series Processors
Supports 4 DDR4 ECC/ UDIMMs, max. 2933MHz 32GB per DIMM
Supports 1 PCIe 3.0 x16, 1 PCIe 3.0 x8, 1 PCIe 3.0x4
Supports 2 M.2 PCIe3.0 x4
Supports 8 SATA 6Gb/s
Supports 2 RJ45 (1GbE) ports by Intel? i210
HDMI, DP, VGA
规格
| 物理信息 | |
| 型式 | micro-ATX |
| 尺寸 | 9.6"x 9.6" (244mm x 244mm) |
| 处理器系统 | |
| CPU | Intel? Xeon? W-1200 / W-1300, 10th / 11th Gen Intel? Core? Series Processors |
| 插槽 | LGA 1200 |
| 芯片组 | Intel? W480 |
| 系统内存 | |
| 容量 | 4 x 288-pin DDR4 DIMM slots (2 DIMMs per channel) |
| 类型 | DDR4 288-pin ECC*/ non-ECC UDIMM * ECC Memory (ECC mode) supported by Intel? Xeon? W-1200 processors |
| 每个DIMM支持的 DIMM 尺寸 | 32GB, 16GB, 8GB, 4GB |
| Max. DIMM Frequency | 2933*/2666/2400 MHz *2933 MHz supported by Intel? Xeon? W-1290/W-1270 series processors, and 10th Gen Intel? Core?i9/i7 processors |
| 电压 | 1.2V |
| 扩展插槽 | |
| PCIe x 16 | SLOT6: Latch PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied |
| PCIe x 8 | SLOT4: PCIe3.0 x8 |
| PCIe x 4 | SLOT7: PCIe3.0 x4 |
| M.2 | 2 M-key (PCIe3.0 x4); supports 2280/2242 form factor |
| 存储 | |
| SATA 控制器 | Intel? W480 (6Gb/s; RAID 0/1/5/10): 7 SATA 7-pin 1 SATA 7+2 pin for SATA DOM |
| 以太网 | |
| Additional GbE Controller | 2 RJ45 (1GbE) by Intel? i210 |
| 显示 | |
| 控制器 | CPU integrated Intel? UHD Graphics: 1 HDMI, 1 DP, 1 DB15*, 1 (15-pin) header* * DB15 and VGA header are supported by Intel? Xeon? W-1200 Series and 10th Gen Intel? Core? Series Processors only. |
| 音頻 | |
| 音频编解码器 | ALC892 |
| 后侧面板 I/O 接口 | |
| VGA 接口 | 1 DB15 (VGA)*, 1 HDMI, 1 DisplayPort |
| USB 3.0 接口 | 2 Type A |
| USB 3.2 接口 | 2 Type A |
| 网络接口 | 2 RJ45 (1GbE) |
| 串口 | 1 DB9 (COM port) |
| UID Button/UID LED | 1 |
| 音頻 | 3 jack |
| 内置接口 | |
| 电源接口 | 24-pin (ATX), 8-pin (12V), 4pin (12V) |
| 辅助面板接头 | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM 接口 | 1 (17-pin, LPC)*, 1 (13-pin, SPI) *support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support. |
| 热量感应接口 | 1 |
| VGA 接口 | 1* |
| 蜂鸣器 | 1 |
| 风扇接口 | 7 (4-pin) |
| USB 3.2 (Gen1) 连接头 | 1 (supports 2 USB3.2 Gen1 ports) |
| USB 2.0 连接头 | 1 ( supports 2 USB2.0 ports) |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| 扬声器 | 1 |
| SGPIO Header | 1 |
| Clear CMOS | 1 (contact pads) |
| ME/SPS Recovery | 1 |
| 板载 LED | |
| Standby PWR LED 5vsb | 1 |
| Port 80 LED | 1 |
| 系统 BIOS | |
| BIOS 类型 | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS 功能 | Plug and Play, ACPI 3.0 compliance wake up events, SMBIOS 3.2, ASRock Rack Instant Flash |
| 硬件监控 | |
| 温度 | CPU,MB,Card Side sensing |
| 风扇 | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Multi-Speed Control |
| 电压 | +12V, +5V, +3.3V, CPU Vcore, DRAM, V1.0M,+BAT, 3VSB, 5VSB |
| 使用环境 | |
| 温度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
