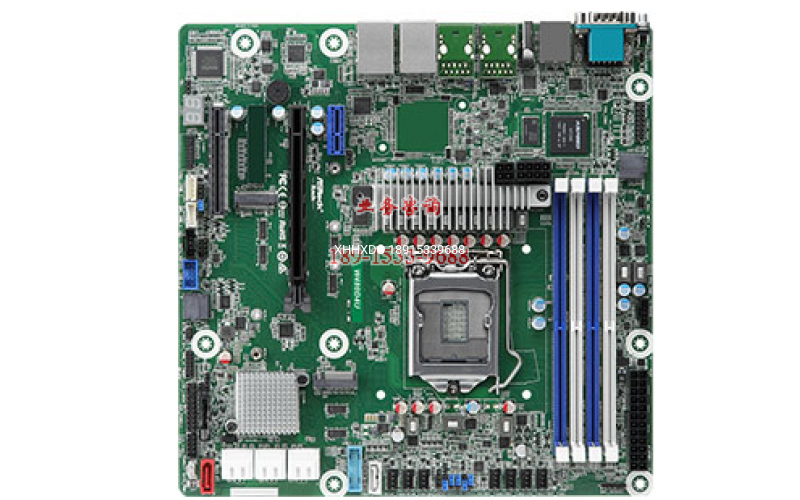

Supports Intel? Xeon? W-1200 / W-1300 Series Processors
Supports 4 DDR4 ECC/ UDIMMs, max. 2933MHz 32GB per DIMM
Supports 1 PCIe 3.0 x16, 1 PCIe 3.0 x8. 1 PCIe 3.0x1
Supports 2 M.2 PCIe3.0x4
Supports 8 SATA 6Gb/s
Supports 2 RJ45 1GbE LAN ports by Intel? i210
ASPEED AST2500
规格
| 物理信息 | |
| 型式 | Micro-ATX |
| 尺寸 | 9.6" x 9.6" (244 mm x 244 mm) |
| 处理器系统 | |
| CPU | Supports Intel? Xeon? W-1200 / W-1300, 10th / 11th Gen Intel? Core? Series Processors |
| 插槽 | LGA 1200 |
| 芯片组 | Intel? W480 |
| 系统内存 | |
| 容量 | 4 x 288-pin DDR4 DIMM slots |
| 类型 | Dual Channel DDR4 memory technology Supports DDR4 ECC*/non-ECC UDIMM *ECC Memory (ECC mode) support varies by CPU. |
| 每个DIMM支持的 DIMM 尺寸 | 32GB, 16GB, 8GB, 4GB |
| Max. DIMM Frequency | 2933*/2666/2400 MHz *2933 MHz support varies by CPU. |
| 扩展插槽 | |
| PCIe x 16 | SLOT6: Latch PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied [CPU] |
| PCIe x 8 | SLOT4: PCIe3.0 x8 [CPU] |
| PCIe x 1 | SLOT7: PCIe3.0 x1 [PCH] |
| M.2 | 2 (M2_1: 22110/2280/2260, Supports PCIe 3.0(x4); M2_2:2280/2260, Supports PCIe 3.0(x4)) |
| 存储 | |
| SATA 控制器 | 8 x SATA 6Gb/s (SATA0-7, SATA_0 supports SATA DOM) |
| 以太网 | |
| Additional GbE Controller | 2 x RJ45 GLAN by Intel? i210 |
| 管理功能 | |
| BMC 控制器 | ASPEED AST2500 |
| IPMI 独立 GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| 显示 | |
| 控制器 | ASPEED AST2500 |
| 后侧面板 I/O 接口 | |
| VGA 接口 | 1 DB15 |
| USB 3.0 接口 | 2 Type-A (USB3.2 Gen1) |
| USB 3.2 接口 | 2 Type-A (USB3.2 Gen2) |
| 网络接口 | 2 RJ45 (1GbE) LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| 串口 | 1 DB9 |
| UID Button/UID LED | 1 |
| 内置接口 | |
| 电源接口 | 24-pin (ATX), 8-pin (12V), 4pin (12V) |
| 辅助面板接头 | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM 接口 | 1 (17-pin, LPC)*, 1 (13-pin, SPI) *support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support. |
| 热量感应接口 | 1 |
| IPMB 接口 | 1 |
| VGA 接口 | 1 |
| 蜂鸣器 | 1 |
| 风扇接口 | 7 (4-pin) |
| USB 3.2 (Gen1) 连接头 | 1 (19-pin, 2 USB 3.2 Gen1) |
| USB 2.0 连接头 | 1 (9-pin, 2 USB 2.0) |
| Thunderbolt AIC 连接头 | 1 (BTO) |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| 扬声器 | 1 |
| BMC_SMB Header | 1 |
| SGPIO Header | 1 |
| Clear CMOS | 1 (contact pads) |
| ME/SPS Recovery | 1 |
| 板载 LED | |
| Standby PWR LED 5vsb | 1 |
| Port 80 LED | 1 |
| Fan Fail LED | 7 |
| 系统 BIOS | |
| BIOS 类型 | 256 Mb AMI UEFI Legal BIOS |
| 硬件监控 | |
| 温度 | CPU Temperature Sensing MB/Card side/TR1 Temperature Sensing |
| 风扇 | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| 电压 | +12V, +5V, +3.3V, CPU Vcore, DRAM, V1.0M,+BAT, 3VSB, 5VSB |
| 支持操作系统 | |
| 操作系统 | Microsoft? Windows: -Windows? 10 (64 bit) Linux: RedHat Enterprise Linux Server 7.7 (64 bit) / 8.1 (64 bit) CentOs 7.7 (64 bit) / 8.1 (64 bit) SUSE Enterprise Linux Server 12 SP5 (64 bit) / 15 SP1 (64 bit) Ubuntu 19.04 (64 bit) / 20.04 (64 bit) Hypervisor: VMWare? ESXi 7.0.0/ vSphere 7.0.0 * W480D4U Supports UEFI BOOT only. * The Intel? RAID mode is not supported on the Linux system. |
| 使用环境 | |
| 温度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity |
